Expedition Blog of Research Cruise SO253Research and Life on Research Vessel SONNEDecember 22nd 2016 Nouméa, New Caledonia until January 21st 2017 Auckland, New Zealand
Three days before Christmas Eve, the new German research vessel left the port of Nouméa with 39 researchers, one journalist, and 31 crew members on board bound for the Kermadec Arc.
We invite you to accompany us on this journey via this website.
Zum deutschen Expeditionsblog geht es hier.
We invite you to accompany us on this journey via this website.
Zum deutschen Expeditionsblog geht es hier.
Research and Life on Research Vessel SONNE
Expedition SO253
The Expedition SO253
The
expedition SO253 takes the RV SONNE into the middle of the collision zone of
two large tectonic plates. Here, the Pacific plate subducts under the
Australian continental plate. At this intersection of the plates, a chain of
volcanoes formed many millions of years ago, forming the Kermadec volcanic arc
between New Zealand and Tonga. Only four of the more than 30 larger volcanoes
stick out of the water, forming the Kermadec islands: Raoul Island, Macauley
Island, Curtis Island, and Nugent Island. The SONNE expedition, however, will
dedicate its activities to the underwater volcanoes Macauley Cone, Haungaroa,
Brothers, and Rumble III.
In the Kermadec arc, volcanic eruptions are frequent even in the present day. More information about the individual volcanoes can be found in the volcano database of Smithsonian Institute.
In the Kermadec arc, volcanic eruptions are frequent even in the present day. More information about the individual volcanoes can be found in the volcano database of Smithsonian Institute.
Expedition at a glance
SONNE Expedition SO253
Research topic: The influence of hydrothermal springs on the chemistry, geology and biology of the ocean
Leadership of the cruise: Prof. Dr. Andrea Koschinsky (Jacobs University Bremen)
Start: 22 December 2016, Nouméa (New Caledonia)
End: 21 January, 2017, Auckland (New Zealand)
Research topic: The influence of hydrothermal springs on the chemistry, geology and biology of the ocean
Leadership of the cruise: Prof. Dr. Andrea Koschinsky (Jacobs University Bremen)
Start: 22 December 2016, Nouméa (New Caledonia)
End: 21 January, 2017, Auckland (New Zealand)
December 21st-25th 2016: Transit to the Kermadec Arc
Expedition Blog
Here, the scientists of Expedition SO253 and journalist
Marie Heidenreich let you take part in the cruise activities for six weeks,
beginning December 22nd, 2016. This blog allows you to learn about the goals of
our marine research and also see how we spend Christmas and New Year onboard
the research vessel.
We are excited to hear your thoughts and we welcome you to email us at
a.koschinsky@jacobs-university.de.
We are excited to hear your thoughts and we welcome you to email us at
a.koschinsky@jacobs-university.de.
December 21st 2016Boarding the ship
All scientists have arrived on the beautiful island of
New Caledonia, located between New Zealand and Papua New Guinea. We enjoy the
tropical conditions here; the water pleasant at 26°C ... perfect for a swim.
The coral reefs in the lagoon just off shore Noumea are home to a plethora of
colorful fish. Today, we stepped aboard the research vessel SONNE for the first
time.
December 21st 2016Arriving and settling in
The harbor is located close to the city center and is
easily accessible, unlike many other ports that are difficult to get in and out
of. The locals of Noumea take interest
in the SONNE as it is so distinct from the large cruise liners that commonly
come to port here. While we board the
vessel, our scientific gear is loaded onto the ship’s deck in 20-foot
containers that were packed back in Germany two months ago. The remotely operated vehicle MARUM QUEST is
part of the lot taken aboard while the ship is tied up to the pier in Noumea.
After we settled into our new home of the comfortable cabins on board, we quickly started to unpack the containers and move the gear into the various labs onboard the ship and secure everything for departure the next morning.
After we settled into our new home of the comfortable cabins on board, we quickly started to unpack the containers and move the gear into the various labs onboard the ship and secure everything for departure the next morning.
December 22nd 2016Breaking for exploring the abyss

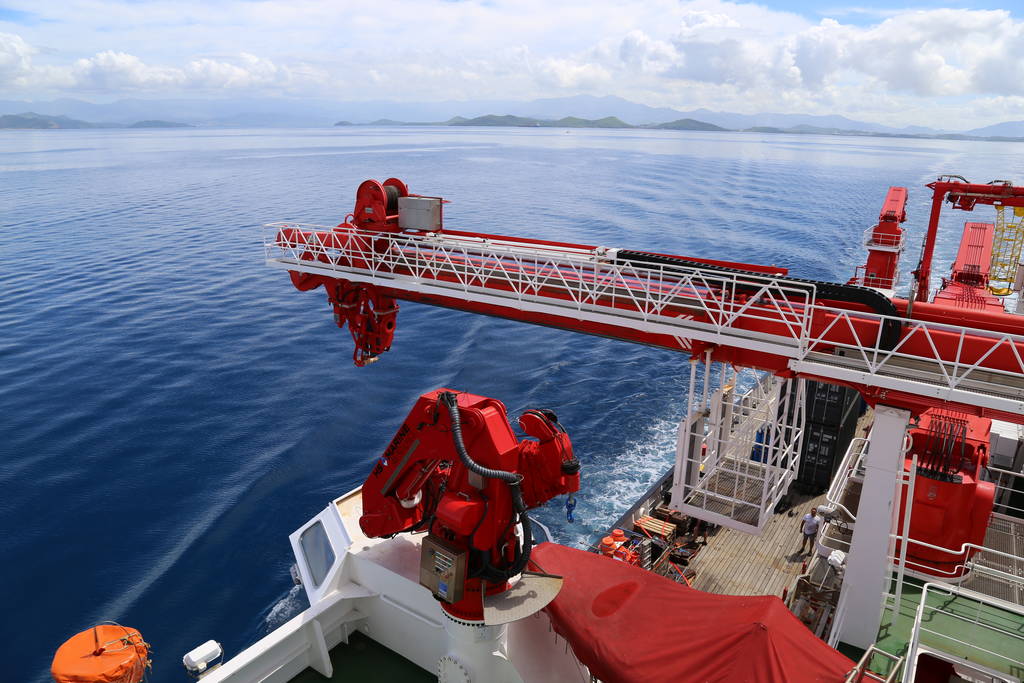

At 9 a.m. today, the ship left the port of Noumea. We
enjoyed the ride, while the ship was plowing through the beautiful scenery of
picturesque patch islands in the turquoise water of the lagoon.
December 22nd 2016Waiting for the research permit for Macauley Cone
We are headed for our first working area, the
underwater volcano Macauley Cone, which lies in a marine protected area. Getting permission from the New Zealand
officials to conduct research in these areas requires us to have the ship’s
hull cleaned of organisms that may have colonized the surfaces during earlier
cruises in different areas of the world’s oceans. Divers removed these unwanted colonizers in
Noumea, and we are now waiting to obtain the permission to enter the protected
area around Macauley Island.
December 23rd 2016Bargaining over water samples
Two days before we got there, we obtained the permission to enter the marine protected area and conduct research at Macauley Cone. Phew, what a relief. We used the remaining time to present to each other the individual goals of the different research groups involved. The range of research topics is very large and includes seafloor mapping, sampling of rocks and hot fluids (water and gas) and investigating life in the hostile environments we are about to visit. It becomes obvious very quickly how challenging it is going to be for chief scientist Prof. Dr. Andrea Koschinsky to get all parties the samples they need to meet their specific research goals. Separate groups of scientists continue to discuss splitting and sharing of samples after the meeting has ended. Many scientists are particularly interested in sampling the hot fluids that escape from the seabed, much like geysers on land. Some of them need larger quantities than others, but the volume of sample is very limited for each vent site. In the end, everyone is happy with the sampling plan, which has not a droplet of fluid wasted.
December 23rd 2016The relentless roll of the ship
The Pacific is large and internet is slow here, which
does not permit us to upload all of the images we’d like to display. Yesterday, all of us were shaken out of the
cabins and labs to attend a safety drill.
We all had to put on our life jackets and gather at the muster stations
fully-equipped for an emergency. There
is a stringent rescue plan in place that has each of us assigned to a rescue
boat – one port (right hand) side and one starboard (left hand) side. The
safety drill also brought out individuals on deck that had retreated to their cabin
to fight seasickness. Although the
weather is fine, there is a long ocean swell that has the ship rocking and rolling a bit. Thankfully, the
ship’s doctor, Dr. Gabriele Wolters, has various kinds of medicine that help
the ones suffering to overcome seasickness.
If you shy away from taking medication, the seasoned sailor can recommend the following course of action: eat ginger root, spend time on deck and stare at the horizon, take naps, but continue eating regularly. Before going to bed, we moved the clocks one hour ahead to adjust for the new time zone, which has us 11 hours ahead of Central European Time.
If you shy away from taking medication, the seasoned sailor can recommend the following course of action: eat ginger root, spend time on deck and stare at the horizon, take naps, but continue eating regularly. Before going to bed, we moved the clocks one hour ahead to adjust for the new time zone, which has us 11 hours ahead of Central European Time.
December 24th 2016Christmas evening onboard the SONNE
It is not easy to develop a Christmas feeling in
bright sunshine and 25°C, but we try our best.
The ship’s Master, Lutz Mallon, relayed this to the German founding
agency in an interview today. In the meantime,
the rest of us wrap small gifts each of had brought onboard and that are to be
distributed in a lottery during the Christmas Evening party. All of us look
forward to the festive dinner the cooks and stewards are preparing for us.
We wish the readers of this blog a Merry Christmas!
December 25th 2016The first sampling event
Right after
breakfast, we sent a water sampling device into the abyss. It is composed of 22 bottles, each can hold
10 liters of water, which can be closed electronically at depth. Central part of the device is a CTD, which
stands for conductivity, temperature, and depth. That probe sends data up to
the ship in real time during the deployment.
December 25th 2016Sound velocity in the deep sea
„We have to lower the CTD to at least 2000 m water
depth, because the temperatures, and hence sound velocities, change drastically
within the water column“ says physical oceanographer Maren Walter from the
University of Bremen. From the salinity,
temperature and pressure data the CTD records, we can calculate the sound
velocity profile of the ocean. This
profile is required for producing maps of the seafloor we can process from
acoustic measurements the ship’s echosounding system conducts. „Only if we know how fast sound travels
through the water column can we precisely determine the depth of the seafloor
underneath us“, Maren Walter continues.
Instead of the 2040 m indicated by the echosounder at
the CTD station, the seafloor turned out to be 2042 m deep. This discrepancy is minor, but it does make a
difference for deploying our gear at the seabed.
December 25th 2016The tea of the sea
When the CTD-water bottle rosette surfaced after two
hours it was immediately recovered on deck and sampled by the scientists. All different shapes and sizes of bottles and
cans were used to retrieve water samples from different depths off the device.
Maren Walter brough copper tubes to hold samples for noble gas
measurements. The copper keeps Helium, which
would escape from plactic bottles, dissolved in the water inside the tube.
Corinna Oster uses a special kind of plastic bottles that do not release any kind of organic compounds to the water stored inside them. Seawater has organic molecules dissolved that Corinna Oster would like to examine. A US magazine described her research object as „the tea of the sea“. In her home institution, the institute for chemistry and biology of the sea of the University of Oldenburg, Corinna Oster uses mass spectrometers to determine the nature of the organic compounds dissolved in the water samples. „The samples I am taking today will be compared with samples from hydrothermally active area we will sample next week,“ explains Corinna Oster. This way, she can find out, how hydrothermal processes affect the composition of dissolved organic compounds in seawater.
Corinna Oster uses a special kind of plastic bottles that do not release any kind of organic compounds to the water stored inside them. Seawater has organic molecules dissolved that Corinna Oster would like to examine. A US magazine described her research object as „the tea of the sea“. In her home institution, the institute for chemistry and biology of the sea of the University of Oldenburg, Corinna Oster uses mass spectrometers to determine the nature of the organic compounds dissolved in the water samples. „The samples I am taking today will be compared with samples from hydrothermally active area we will sample next week,“ explains Corinna Oster. This way, she can find out, how hydrothermal processes affect the composition of dissolved organic compounds in seawater.
December 26th-30th 2016: Macauley Island
December 26th 2016Land in sight!
Today, we get to see land again, as we stop 1.5 km off
Macauley Island to investigate the subseafloor volcano of Macauley Cone. The island is rocky, barring a few shrubs,
and has steep cliffs displaying layers of basaltic rock interspersed with a
prominent layer of dacitic tephra that was deposited 6000 years ago during a large
volcanic eruption. The ship is currently
positioned above the center of that eruption.
December 26th 2016A first test dive for QUEST
December 26th 2016Water samples from 700 m water depth
The CTD was deployed late in the night. The goal this time was to get as close as
possible to the hydrothermal vents to collect large volumes of water, which are
required for some kinds of measurements.
“We have successfully captured the extent of the hydrothermal plume,” chief
scientist Andrea Koschinsky said after the station work was completed.
December 26th 2016Hunting the hot plume
In the CTD laboratory, the scientists watch the data
streams coming in with great anticipation and immediately respond by telling
the bridge and winch operator how to adjust the course and water depth of the
instrument. The goal is to find the core of the plume, where the concentration
of vent water is highest. This activity
is called “plume hunting”. The scientists monitor real time data of pressure
and oxygen content, but the most important measurement for spotting the plumes
is the recorded redox-potential, which indicates the presence of reduced chemicals,
like metals and sulfide, that are emitted from hydrothermal vents. The higher
the concentrations of iron (Fe2+) and hydrogen sulfide are, the
closer the plume hunters are to the vents.
Samples from the interior of the hot plume
As soon as the CTD with the water bottles is secured
on deck, the scientists collect samples from the tall, gray sample bottles.
Each of the 22 bottles holds a water sample from a different depth. The shallowest sample is from just 10 m water
depth, while the deepest one is from 678 m, within the hydrothermal plume.
December 27th 2016Long night hours for science
After working on the water samples all night, Harald
Strauß from the University of Münster announces: “I have conserved the samples
for various measurements in our laboratories in Münster. Samples for carbon
isotope analyses I poisoned, so that microbes cannot turn over carbon after
sampling.” Other samples are stored in the cold and dark fridge.
“Some samples gave off an intense rotten-egg-smell,
which is indicative of elevated hydrogen sulfide concentrations. These samples,
I treated so that the hydrogen sulfide does not get oxidized. I want to examine
the different sulfur compounds, like hydrogen sulfide, sulfate, and elemental
sulfur in rocks and animals. To accomplish this, all chemical reaction post-sampling
have to be inhibited,” he explains.
December 27th 2016Particle fishing on top of a volcano
Now that the scientist know where the vents and plumes
are, they want to find out how the plume particles are transported in the
oceans. To accomplish this goal, they
position a deep-sea pump in the middle of the particle cloud during the night
hours, when the ROV is not being used.
The pump sucks water through filters that collect the particles. Other
scientists use so-called “gorilla wool” to collect trace amounts of radium
dissolved in the water. When the pump is
back on board at 8 in the morning, the researchers can finally go to bed.
December 27th 2016QUEST going down
After recovering the pump, ROV QUEST
is launched at 9 a.m. to survey the flanks of the volcano crater, collecting
rock samples and video of the seafloor. The scientists not involved in the CTD
work take over and congregate in the meeting room, where all the video material
is displayed on large screens. As soon
as the scientists see interesting rock formations or animals, they can ask the
ROV pilots to zoom in on the area and collect samples.
December 27th 2016A do-it-yourself-construction
The ROV also deploys heat flow
blankets, circular pillows that measured how much heat escapes through the
seafloor. “These blankets are do-it-yourself-constructions: the tube is from a
motor cycle. Thermometers are attached
above and underneath the blanket. From the temperature difference we can
estimate the heat flow density”, explains Fabio Caratori Tontini, from the New
Zealand research institution GNS Science. “For these measurements, it is
essential that heat cannot bypass the blanket. This is why the blankets are
equipped with a second tube filled with lead, which pushes the device firmly
down on the seabed.”
December 27th 2016Volcanoes as an energy source
The flanks of submarine volcanos deliver large
quantities of heat to the oceans. “With
the heat flow blankets, we measure the amount of heat the volcano releases. I
have the vision that my kids will see mankind use this enormous energy source.
Many nations around the Pacific “ring of fire” are faced with an increasing
energy demand. Underwater geothermal
systems could provide clean and unlimited energy right to their doorsteps. We should perhaps start using oceanic
resources to deal with these kinds of future challenges. This is happening for
food and raw materials already, why not energy?” suggests New Zealand geologist
Cornel de Ronde.
December 27th 2016Rocks, crabs, and flatfish
The QUEST dive lasts all day long. We follow the ROV’s track through the volcano
crater underneath our vessel in real time.
In a water depth of 320 m, the seafloor is littered with mussels,
sediments, and fragments of rock. Fish dart in the headlights of QUEST. Countless small flatfish are barely visible;
they don’t seem to move around much, not even when a crab walks across
them. When we arrive at the vent site,
we notice copious white smoke coming up from the bottom of the crater. The vent water has a temperature of
112°C. We collect plenty of samples of
the hot vent fluid and rocks. QUEST has scoop
nets in one of its drawer that we use to scoop up animals from dense beds of
mussels.
December 27th 2016Plentiful bounty
In the evening hours, the ROV is brought back on deck
and the scientists have plenty of water, rock, and biota samples to keep them
working in the ship’s laboratories for most of the night.
December 28th 2016Radioactivity from within the volcano
Bernhard
Schnetger from the Institute for Chemistry and Biology of the Marine
Environment in Oldenburg examines the water samples QUEST has retrieved for
radium isotopes, of which there are four with different half-lives and decay
products. One of these isotopes has a half-life of 4 days, meaning it takes
only that much time to halve the number of radium atoms in a sample. The radium isotope with the longest half-life
decays much more slowly, requiring 1600 years for the number of atoms of that
isotope to be reduced by half.
December 28th 2016Radium as indicator of mixing
Like many other elements, radium is present in hot
magmatic rocks deep inside the volcano.
Seawater circulating along fractures within a volcano leaches radium
from the volcanic rocks and flushes it into the ocean. “Using isotopes I can find out how
much of the radium was released from the hydrothermal vents and how quickly the
hydrothermal vent fluids and ambient seawater were mixed. This helps me
figuring out the effect of hydrothermal vents on ocean composition,” says
Bernhard Schnetger.
December 28th 2016Oases of life at the bottom of the sea
With the
manipulator arms of the ROV we can collect biological samples, like
mussels. Christian Borowski from the
Max-Planck-Institute of Marine Microbiology studies symbiotic organisms,
specifically invertebrates like mussels and tube worms, which live in a
symbiotic relationship with bacteria. The gills of these animals host countless
bacteria that make a living from chemosynthesis.
Bild: MARUM – Zentrum für Marine Umweltwissenschaften, Universität Bremen
Bild: MARUM – Zentrum für Marine Umweltwissenschaften, Universität Bremen
December 28th 2016Energy from chemistry
“Just like in photosynthesis, chemosynthesis turns inorganic
carbon dissolved in seawater into organic molecules: biomass at the base of the
hydrothermal food chain. Light is not
needed in chemosynthesis, as the energy for the metabolism comes from chemical
reactions,” says Christian Borowski.
December 28th 2016Symbiosis of mussels and bacteria
Because
there is no light at water depths greater than 200m, photosynthesis does not
play a role in the deep sea. At hydrothermal
vents, bacteria react hydrogen sulfide with oxygen and use the energy released
to turn dissolved carbon dioxide into organic molecules, which support their
host animals. The benefit for the bacteria in this symbiotic relationship is
that the host animal pumps water through the gills and delivers oxygen and
hydrogen sulfide to the bacteria in the gill tissue.
December 28th 2016Thermal Blankets for the South Pacific
This morning, the ROV QUEST was once more deployed over the volcanic caldera. The console from which QUEST is controlled is housed in a shipping container on the main deck. The ROV‘s first mission today is to collect the heat flow blankets, which are recording how much heat is being transferred from the flanks of the volcano into the ocean. On computer monitors, we can watch how QUEST is searching the sea bottom for the blankets. Exactly at the moment we’re all looking at the screen, a shark shoots through our picture, unimpressed by our robot. QUEST picks up the blanket with one of its manipulator arms and places it into a drawer in its body.
December 28th 2016Dolphins
Just when the ROV was about to surface and all the
scientists were ready to secure their samples, someone shouts out “Dolphins!”.
We all race to the railing to inspect these marine mammals.
December 28th 2016Fascinating choreography of the dolphins
A large school of dozens of dolphins plays in the
water just behind the tail of the ship.
It is fascinating to see groups of dolphins emerge from and plunge back
into the water in perfect synchrony.
December 29th 2016The tap is on
Water geochemists Charlotte Kleint, Nico Fröhberg, and
Jan Hartmann can finalize their measurements of hot water for the first work
area of Macauley Cone. With the CTD,
they collect additional samples of the remote parts of the hydrothermal plume,
where the dilution with seawater is greatest.
December 29th 2016Samples for years to come
After another successful dive, QUEST surfaces with abundant
sample material. The scientists quickly
move the samples into the various labs and start describing, subsampling,
measuring, and archiving the samples.
Properly archiving and preserving the samples is key, because many of
the measurements cannot be conducted at sea but will take place in the
different home laboratories. This work
will keep the scientists busy for months if not years. Only through meticulous scientific work,
however, will we be able to use the data and observations collected to improve
our understanding of the oceans.
December 29th 2016A giant from the ring of fire
Today’s dive of QUEST to a smaller volcano yielded an
impressive catch: mussels of the species Gigantidas gladius with a
length of up to 30 centimeters. The same
species was sampled at Macauley Cone the day before, but there the animals were
much smaller (<6 cm long). “This indicates that we sampled a population of
old mussels today, while we found only young animals yesterday. The large
numbers of very large shells of dead mussels at Macauley Cone suggests that old
mussels once proliferated there, too,” explains Christian Borowski.
Gigantidas gladius does not live in the immediate vicinity of vents, but prefers areas where lukewarm water, which results from mixing of seawater and vent fluids underneath the seafloor, seeps up. The biologists suspect that this seepage may gradually stop in some areas, while new seepage patches develop elsewhere. New seeps then attract mussel larvae to colonize the area and new mussel beds will grow.
Gigantidas gladius does not live in the immediate vicinity of vents, but prefers areas where lukewarm water, which results from mixing of seawater and vent fluids underneath the seafloor, seeps up. The biologists suspect that this seepage may gradually stop in some areas, while new seepage patches develop elsewhere. New seeps then attract mussel larvae to colonize the area and new mussel beds will grow.
December 30th 2016Hot search for the source
Today is our last day at Macauley Island. Two days ago QUEST found
evidence for a – so far unknown – black smoker at the seafloor. Using the CTD,
we found another plume from an unknown source which we will attempt to find on today’s
dive.
Whoever discovers a hydrothermal vent is allowed to name it. Unlike the names of flora and fauna, there are no strict rules for naming hydrothermak vents. Commonly their names refer to features of the vent’s geology or to their discovery. There is even a hydrothermal vent called Barad Dûr (after the tower in the Lord of the Rings) on the Mid-Atlantic Ridge. Should we find a new black smoker on the expedition, we can name it. However, we have not agreed on a name so far.
Picture: MARUM – Centre for Marine Environmental Sciences, University of Bremen
Whoever discovers a hydrothermal vent is allowed to name it. Unlike the names of flora and fauna, there are no strict rules for naming hydrothermak vents. Commonly their names refer to features of the vent’s geology or to their discovery. There is even a hydrothermal vent called Barad Dûr (after the tower in the Lord of the Rings) on the Mid-Atlantic Ridge. Should we find a new black smoker on the expedition, we can name it. However, we have not agreed on a name so far.
Picture: MARUM – Centre for Marine Environmental Sciences, University of Bremen
December 30th 2016“Daddy, I want a smoker too!”
Cornel de Ronde has discovered two hydrothermal vents
on past expeditions and named them after his daughters Olivia and Lena. His
second-oldest daughter, Lena, is particularly proud that her vent has a gold
content of 90 gram per ton, while Olivia’s vent contains only copper. Cornal de
Ronde’s youngest daughter Scarlett is five and keeps asking for her own vent:
“Daddy, I want a smoker too!”
Picture: NOAA
December 30th 2016Stowaways
Unfortunately, our search for the
second hot source on the submarine volcano offshore of Macauely Island remains
unsuccessful. And now the time has come to leave our first working area. Since
birds from the island were attracted by the light of the ship, especially
during the night, and some of them have landed on the vessel, we searched for
stowaways in all corners of the ship. The New Zealand authorities specifically
emphasized how important it is that we leave the birds on the island and
release them from the ship before we leave the area. And the crew does discover
a lost bird in the winch room, which is set free before we set sail again. The
picture shows a red-billed tropical bird which can be recognized by its long
red tail feathers. For the first time since we cameon board, there is a small
rainshower.
December 30th 2016Side trip to Curtis and Cheeseman Island
In the evening, we look forward to a
special event: we are making a short detour to Curtis Island, a ragged volcanic
crater emerging above the sea surface. Directly next to it is the even smaller
rocky island, Cheeseman Island. A smell of rotten eggs whiffs over from both
islands, a clear indication that the volcano is emitting hydrogen sulphide.
December 30th 2016Feathered escort for the camera drone
Volker Ratmeyer, chief of the ROV
team from MARUM, pilots a drone over the water towards the islands. It sends us
videos in real-time from the volcanic crater, in which lies a small lake.
During the flight the drone also takes fantastic pictures in a bird’s eye view
from the Sonne. ‘Bird’ is an apropos
term: three individuals of a shearwater species escort the drone during its flight.
Finally, we begin our 15-hour transit to our next working area, Haungaroa. We
will see no more land from now until we reach Auckland on January 21st.
December 31st 2016 - January 6th 2017: Haungaroa
December 31st 2016Barbecue and Dinner for One
On New Year’s Eve, the cooks
excelled themselves the the barbecue: we had roast suckling pig, various salads and vegetarian
grilled dishes – we could not have imagined anything better in our dreams. And,
of course, we watched “Dinner for One” at 9 p.m., a German tradition on New
Year’s Eve but a first for our American, French, and New Zealand colleagues.
January 1st 2017Happy New Year!
12 hours before German time, we welcomed
the New Year with sparkling wine and sparklers. We wish all of you a wonderful
year in 2017!
Video: René Neuholz
Video: René Neuholz
January 1st 2017Lucky Strike at Haungaroa volcano
This morning at 8 o’clock, when many
of you in Germany were probably just enjoying some raclette or fondue and the
first firecrackers were being ignited, the ROV QUEST descended on its fifth
dive, also the first dive at the Haungaroa volcano.
January 1st 2017A swarm picture
During the dive, we are looking for
the signals of a hydrothermal plume above the crater, which was recorded by
another ship expedition fourteen years ago. And, indeed, the ROV landed in the
middle of a field with diffuse warm fluids when it reached the rim of the volcanic
crater at a depth of 670 m . The temperature here is around 23 degrees C, while
the temperature of the ambient seawater is 8 degrees. The living environment here
spills over with animals: it abounds with barnacles, tube worms, lobsters,
mussels, fishes, shrimps, anemones and snails. We also find the mussel Gigantidas
gladius again, which grows up to 30 cm long. Against the dark background, fluffy
looking bacterial mats glow in the searchlights.
Picture: MARUM – Center for Marine Environmental Sciences, University of Bremen
Picture: MARUM – Center for Marine Environmental Sciences, University of Bremen
January 1st 2017Shimmering water
In the area of about two hundred
meters square we come again and again across so-called ‘shimmering water’. When
warmer water from the subsurface mixes with colder ambient water, this forms
flow marks. The water resembles air flickering from heat. This gas-bearing
shimmering water is what supports life in the hydrothermal field.
Picture: MARUM – Center for Marine Environmental Sciences, University of Bremen
Picture: MARUM – Center for Marine Environmental Sciences, University of Bremen
January 1st 2017Shimmering water, volcanic ash and iron crusts
QUEST takes samples of the
shimmering water, as well as sampleing volcanic ash and other rocks. It scrapes
off iron crusts which have formed on top of the ash layers. The bio box is
filled with mussels. The heat flow blankets are deployed again here, and will
be collected again tomorrow.
January 1st 2017Productive field
“Often the search for hydrothermal
fields is like looking for a needle in a haystack. It is great that we landed
directly in this hydrothermal field with the ROV today. Even though the vents here
are very diffuse, we can assume that simply because of the large surface of
this active area there is a significant amount of material flux into the
surrounding water.” Andrea Koschinsky is pleased about this finding. The
scientists once again have a full night program in the eleven laboratories.
January 2nd 2017Windstorm front ahead!
The weather forecast announces a
low-pressure area for Thursday and Friday, which will pass by the east coast of
New Zealand and will gift us with high waves. For our working area, waves up to
four to five meters high are predicted. “We have only three and a half meters of
freeboard, which means that with a wave of four meters, water could enter the
main deck,” says Captain Lutz Mallon. “We also need to determine whether the
ROV and the CTD can still be deployed, or whether we can only map the seafloor
under these conditions.”
January 2nd 2017The topographical survey of the oceans
Throughout New Year’s Eve, we mapped
the seafloor to fill in gaps in older maps of the seafloor. RV Sonne is
equipped with the most globally up-to-date swath echosounder. With this device,
it can produce high-resolution maps of the seafloor even at a speed of up to 10
knots. Depending on the water depth, about once per second a shrill whistling
signal with a frequency of 12 kilohertz is beamed. The signal is reflected off
the seafloor and is then recorded by the hydrophones installed underneath the
ship’s hull. On the sea surface, the sound velocity is 1524 meters per second.
The crater of Haungaroa volcano is at a water depth of 650 m. Therefore, the
sound signal takes a bit less than a second to reach the bottom from the ship
and then return again.
January 2nd 2017We found a chimney field!
With the echosounder we cannot only
map the seafloor, but we also detect gas bubbles. Because of the difference in
density between gas and water, the sound signal is also reflected by gas
bubbles, which occur as green spots on the blue background of the monitor. Last
night, marine geologist Janis Thal discovered such a gas bubble flare above a
volcanic cone in the caldera of Haungaroa. Today, the ROV QUEST followed this
indicator, looking for a hydrothermal source. And indeed, it descended into the
thick of a field of chimneys from which 230 degrees C hot water is being expelled.
January 2nd 2017Find from another world
We took samples of the hot fluids
emanating from the chimneys with the ROV and collected fragments of the
chimneys. It was a very special moment when Harald Strauß lifted the chimney
from the ROV drawer, which we so far had only seen in the videos of the
underwater world.
Picture: MARUM – Center for Marine Environmental Sciences, University of Bremen
Picture: MARUM – Center for Marine Environmental Sciences, University of Bremen
January 2nd 2017Our Chimney
January 2nd 2017Material for many years to come
In addition to the chimney, QUEST brought biological,
water, and rock samples to the Sonne, which again promise a long night in the
lab and subsequently material for many years of study.
January 2nd 2017Yo-Yo above the volcano
Two more CTD stations
are planned for tonight. For the so-called tow-yo, the CTD moves
up and down like a yo-yo while the vessel pulls it along a track over the
underwater volcano. From this zig-zag line,
we can find out where the plume is strongest and where we could perhaps
find more hydrothermal sources. The second deployment is a simple vertical one,
during which water samples are taken about the newly discovered chimney field.
January 3rd 2017Clue for further hot sprints
Last night’s tow-yo went very well, and the turbidity
and the redox potential measured with the CTD gave indications of other
hydrothermal vent sites on the caldera floor of the volcano at a water depth of
about 1100 m. Janis Thal’s echosounder data showed gas emissions at the same
site. Tomorrow we will dive down there with QUEST to get to the bottom of these
hydrothermal signatures. Today we are taking further samples at the hot vents
we had discovered yesterday, and collecting the heat flow blankets.
January 4th 2017Snow-covered underwater Christmas tree
The picture does not really show a snowy submarine
Christmas tree, but instead a rock covered with barnacles, the closest thing to
a Christmas tree of everything we have seen during this cruise so far. “Goose
barnacles, like bay barnacles, are crustaceans which sit firmly on the rocks of
the seafloor and filter nutrients from the seawater,” explains biologist
Katharina Sass from the University of Hamburg.
Picture: MARUM – Center for Marine Environmental Sciences,
University of Bremen
January 4th 2017Goose barnacles
Goose barnacles cling on to the rock with an adhesive
disk. Their heads sit on a stipe and consist of several plates made of chitin.
Between these chitin plates, they poke out their fan-shaped twine feet, with which
they filter plankton from the water flowing by. On their twine feet there are
numerous white bacteria, which give the animals their feathery-fluffy
appearance.
Picture: MARUM – Center for Marine Environmental Sciences, University of Bremen
Picture: MARUM – Center for Marine Environmental Sciences, University of Bremen
January 4th 2017The volcano is keeping its secrets
Despite the clear indication of more hydrothermal vents
in the crater of the volcano, we can’t find anything. With visibility at around
15 meters and an area of approximately a square kilometre in which the vents
may be located, we could well have passed them without noticing.
January 5th 2017Sparks with a shark
We are now on our way from Haungaroa to Brothers Volcano.
We are using the transit for a meeting, where every working group is presenting
their results so far. We have already learned that Macauley cone has one of the
most acidic, and in the shallower hydrothermal systems most iron rich, fluids.
We measured a pH of 1.1,as acidic as battery acid. We also found a lot of
sulfur. It seems as if at Macauley, boiling brine is emitted from vents on the
seafloor, which has been heated underground.
“We knows this because the salt concentration in these solutions is extremely high. During boiling, a vapour phase must have separated from this salt-rich phase, which was left behind,” explains Andrea Koschinsky. Correspondingly, at Haungaroa volcano we find the vapour that separated from the brine. At 686m depth the boiling point of seawater is 270°C, which is exactly what we measured with the ROV’sthermometer. “That is exactly what we were hoping for: sulfuric acid fluids at one volcano, carbonic acid-rich solutions at the next,” Wolfgang Bach explains ,evidently enthralled with both sites. “ With a pH of 4, the fluids at Haungaroa volcano were a thousand times less acidic than those at Macauley volcano,” Andrea Koschinsky adds. With the heat flow blankets, we measured a huge amount of heat being released from the volcano flanks into the seawater.
The biologists are also reporting some observations on the age of the different mussel populations, when Fabio Caratori Tonini enters the room with a small ivory-coloured object….
“We knows this because the salt concentration in these solutions is extremely high. During boiling, a vapour phase must have separated from this salt-rich phase, which was left behind,” explains Andrea Koschinsky. Correspondingly, at Haungaroa volcano we find the vapour that separated from the brine. At 686m depth the boiling point of seawater is 270°C, which is exactly what we measured with the ROV’sthermometer. “That is exactly what we were hoping for: sulfuric acid fluids at one volcano, carbonic acid-rich solutions at the next,” Wolfgang Bach explains ,evidently enthralled with both sites. “ With a pH of 4, the fluids at Haungaroa volcano were a thousand times less acidic than those at Macauley volcano,” Andrea Koschinsky adds. With the heat flow blankets, we measured a huge amount of heat being released from the volcano flanks into the seawater.
The biologists are also reporting some observations on the age of the different mussel populations, when Fabio Caratori Tonini enters the room with a small ivory-coloured object….
January 5th 2017Shark attack on the Magnetometer
The tooth marks on the magnetometer sensor are some millimetres
deep. Fabio Caratori Tontini presents the broken off shark tooth he pulled out
of the sensor. The one centimetre thick acrylic glass housing of the sensor is
covered with multiple cracks and a small piece of a shark tooth is still
sticking in the surface. The fins of the torpedo shaped sensor have also fallen
victim to the shark attack. The geophysicist reports, surprised, that the
sensor has been attacked several times by sharks, “but today’s attack was much
more powerful”. His colleague Cornel de Ronde agrees and suspects that we were
close to getting water into the precious electronic sensors.
January 5th 2017The magnetic sense of sharks
Shark attacks on magnetometers are quite
frequent because the animals can feel the magnetic field the magnetometer is
producing. Sharks have very sensitive sensory organs in their nose called the ‘Lorenzian
ampules’, which they use to detect the electric field of their prey. Quite
possibly, the shark has mistaken our magnetometer for food. Despite all the
expertise present on board, we have no shark expert present, and therefore we
can only suspect that it might have been a great white shark. Interestingly,
even today it is unknown if humans are able to sense magnetism or not.
January 5th 2017Pole reversal gives away the age of the sea floor
With the magnetometer, Fabio Caratori Tontini can
measure how magnetic the sea floor is and if it consists of more magnetic
volcanic rock or if we are just moving over sediments that are only weakly
magnetised. By measuring the magnetic field, the scientist, who is from the New
Zealand research institute GNS Science, can also determine the age of the rocks
on the seabed. Usually the magnetization of the Earth reverses itself
approximately every 250,000 years. The rocks record the direction of the
magnetic field at the time they cooled down. After each pole reversal, the
magnetic field of the rocky sea floor points in the opposite direction. The
different layers tell the geophysicists also how many hundreds of thousands of
years old the rocks are. The last polar reversal happened 800,000 years ago -
the next one is long overdue.
January 6th 2017Sawing
Geologists Wolfgang Bach and Harald Strauß cut the
chimneys with a stone saw to study their interior.
January 6th 2017Chimney cutting machine
Wolfgang Bach cuts our first chimney lengthwise. The
electric stone saw goes through the flue like it’s butter.
January 7th-14th 2017: Brothers
January 7th 2017First dive at Brothers Volcano
After Fabio Caratori-Tontini fixed the magnetometer
yesterday afternoon with glue and new fins have been attached, it can be used
again tonight to record the magnetic fields on the bottom of the sea. At the
same time we are mapping the sea floor on our way to Brothers Volcano.
At 8 a.m. the ROV is deployed again, and one hour later it arrives on the sea floor 1450 metres below.
“My personal highlight today was the snow covered landscape,” remarks Andrea Koschinsky. And indeed the underwater pictures transmitted by the ROV look like a snow covered forest clearing. “The colours down here have a blue shift because it is deeper, and the light sediments sparkle white like fresh snow,” the chief scientist continues. “The shrimp gliding through the water look, in the spotlight, like large snowflakes.”
In the evening the ROV brings rocks and a sample of sulfur on board and “many water samples that smell like rotten eggs,” according to Andrea Koschinsky.
At 8 a.m. the ROV is deployed again, and one hour later it arrives on the sea floor 1450 metres below.
“My personal highlight today was the snow covered landscape,” remarks Andrea Koschinsky. And indeed the underwater pictures transmitted by the ROV look like a snow covered forest clearing. “The colours down here have a blue shift because it is deeper, and the light sediments sparkle white like fresh snow,” the chief scientist continues. “The shrimp gliding through the water look, in the spotlight, like large snowflakes.”
In the evening the ROV brings rocks and a sample of sulfur on board and “many water samples that smell like rotten eggs,” according to Andrea Koschinsky.
January 8th 2017Another hydrothermal vent field
We spend most of the dive deploying the heat
flow blankets and exploring the larger of the two cones in the volcano caldera.
For the first time we don’t find any mussels, but see only swarms of shrimp on
the seafloor, which flee as soon as the ROV approaches. In the afternoon, we suddenly
encounter previously unknown hydrothermal vents at Brothers Volcano. Located at
a depth of 1200 meters, the fluids exhibit a relatively acidic pH of 2.1. We take
water samples and sample of iron crusts.
January 9th 2017High seas bring us to Kibblewhite volcano
It is windy today, and the currents around
Brothers Volcano are too strong for the ROV to be deployed. The alternative
program is to go to the undersea volcano Kibblewhite. It is located about 30
kilometres north-west at a depth of about one kilometre below the sea surface.
Our echo sounder has shown that there are two volcanic craters. We start off
with a tow-yo using the CTD to see if there are hydrothermal vents we could
target during future expeditions. In the evening we steam back to Brothers Volcano,
where hopefully we will be able to go diving again tomorrow to take samples of
hot fluids and recover the heat flow blankets.
January 9th 2017We are not alone!
Today, for the first time we saw another ship on the horizon.
The huge container ship “Hamburg Sud”passed
us slowly.
January 10th 2017Midnight on board
January 10th 2017King of the air
This
afternoon, a giant black-and-white bird majestically circled around the ship. „That was an albatross,” says Nico Fröhberg. “Albatrosses are pelagic birds that
spend their entire life migrating across the oceans. Through a tube in their
beaks, they manage to excrete the accumulated salt.”
“It didn’t flap its wings even once while I was watching it,”reports Charlotte Kleint in amazement.
“It didn’t flap its wings even once while I was watching it,”reports Charlotte Kleint in amazement.
January 11th 2017Engine room tour
During a tour of the engine room, chief engineer Achim Schüler explains how SONNE is setting new standards: The noise
and vibrations coming from the engines are reduced to
a minimum. All the engines have anti-vibration mounts,
ensuring that almost no vibrations are transmitted to
the hull. This also means that the people on board barely
notice the 6,500 kilowatts of diesel power working
beneath their feet.
January 11th 2017Safe return to port
The
research vessel SONNE is built following the “safe return to port“ principle:
even in case of severe damage – for example a fire in the engine room – it is
possible to reach the next port thanks to the second engine room. Achim Schüler
explains: “Fire is the worst case scenario for any ship.” SONNE is also
resistant to collisions, inrush of water, and seafloor contact: “As inrush of
water in both engine rooms is highly unlikely, we can go to sea feeling very
calm.”
January 11th 2017Fuel for a month of full speed
All diesel
tanks hold a total of 1080 cubic meter which equals 1.080.000 1-Liter bottles
of water. “The ship can go at full speed for an entire month with that amount
of fuel” explains Achim Schüler. However, this never happens, since scientists
tend to stay within their working area in between.
January 11, 2017Not One Day without Science
Science
is rarely affected by all of this; according to Achim Schüler: "The worst
thing that has happened so far was that the stern A-frame was down for two
months. But then it turned out that operating the dredge on the lateral fore
and aft beam works out even better than on the stern." So, since the SONNE
was commissioned in November 2014, scientific research has not been
discontinued for a single day.
January 11th 2017Travel with a Blue Angel
The vessel is also leading
the pack when it comes to environmental protection: The exhaust systems were designed in line with Blue
Angel certification requirements.
It is not only that the vessel uses ultra-low-sulfur diesel
fuel, but also that its exhaust gases are scrubbed in order
to remove nitrogen oxide so as to keep emissions as low
as possible.
January 11th 2017The winch room
January 12th 2017Inside the control center for QUEST
The pilots navigate the ROV through
difficult environments such as the pillars and chimneys at Brothers Volcano. The job of an ROV pilot is a complex one: they have to be highly skilled and highly trained in order to fight currents whilst navigating through complex structures.
January 12th 2017Fascinating rock-formations
Despite
strong currents near the seafloor we had two successful dives: “we see what you
could call forests of chimneys”, Andrea Koschinsky says excitedly. “Furthermore, delicate pillars with smoking heads which resemble beehives. Some
of them look as if they were painted completely in green”, she describes. The
light-greenish shimmer is caused by mats of bacteria which oxidize iron and
sulfur on the surface of these beehive-structures.
The surface below the bacteria is auburn colored. By grabbing a piece with the robots arm, we discover that the delicate pillars are more stable than they look. “They are stable, because their interior is composed of chalcopyrite”, explains Wolfgang Bach. As we collect the ROVs loot in the evening, we discover orange shining chimneys. Their interior sparkles reddish-gold in the sunset.
The surface below the bacteria is auburn colored. By grabbing a piece with the robots arm, we discover that the delicate pillars are more stable than they look. “They are stable, because their interior is composed of chalcopyrite”, explains Wolfgang Bach. As we collect the ROVs loot in the evening, we discover orange shining chimneys. Their interior sparkles reddish-gold in the sunset.
January 12th, 2017Chimneys Doused in Green
"Some of the chimneys look as if someone
had poured a bucket of light green paint over them," the geochemist
Koschinsky continues. The light green shimmer comes from bacterial mats that oxidize iron
and sulfur.
January 12th, 2017Delicate Columns on the Seabed
Under the bacteria, the surfaces of the
chimneys are a rusty red. When we grasp them with the robot gripper arm after a
while, we find that the delicate columns are much more stable than they look.
January 12th, 2017Not Delicate at All
"These columns are so stable, because
they are made of chalcopyrite on the inside," explains Wolfgang Bach, who
removes the chimney from the diving robot’s rock drawer in the evening.
January 12th, 2017Gold! No, not gold. Chalcopyrite.
The bright orange Chimneys appear as we
gather the spoils from the ROV’s drawer in the evening. Their interiors glisten
with a reddish-golden gleam.
January 13th, 2017A Worm as a Bacteria Container
It
looks as if Christian Borowski were taking a handful of twigs from the bio box.
"These are tubeworms, which typically occur in the vicinity of deep-sea
hot and cold springs," states the marine biologist.
"These things that look like twigs are the tubes that the worms secrete around themselves," adds Geier. "Some tubeworms can reach up to two meters in length," the doctoral student continues. "And some can live for up to 250 years," says Christian Borowski. (shots fired)
"These tubeworms have no digestive organs, but live exclusively on what their symbionts produce for them," explains symbiosis researcher Christian Borowski with fascination. The worms absorb hydrogen sulfide from the water through their gill filaments and conduct it throughout their entire bodies via their blood streams.
"The best thing is that 90 percent of the worm’s body consists of an organ that contains the symbiotic bacteria, or trophosome. This is practically a bacteria container that sits where the bowel would normally be located. This is a great example of the interdependence of the host and its symbionts."
"These things that look like twigs are the tubes that the worms secrete around themselves," adds Geier. "Some tubeworms can reach up to two meters in length," the doctoral student continues. "And some can live for up to 250 years," says Christian Borowski. (shots fired)
"These tubeworms have no digestive organs, but live exclusively on what their symbionts produce for them," explains symbiosis researcher Christian Borowski with fascination. The worms absorb hydrogen sulfide from the water through their gill filaments and conduct it throughout their entire bodies via their blood streams.
"The best thing is that 90 percent of the worm’s body consists of an organ that contains the symbiotic bacteria, or trophosome. This is practically a bacteria container that sits where the bowel would normally be located. This is a great example of the interdependence of the host and its symbionts."
January 13th, 2017 Deep Sea TV
The images taken by the QUEST diving robot in
the Brothers Volcano are so impressive that we are completely captivated by the
landscapes that open up before our eyes in the conference room, the hangar and
the labs. Some of us would love to watch deep-sea television all day long. But
we have far too much to do.
January 14th, 2017 Octopus
Today is our last dive at the Brothers
volcano. Except for a very cute octopus, we find nothing extraordinary the
whole morning, or nothing that points to a hydrothermal source, at any
rate.
January 14th, 2017Enchanted Forest at the Bottom of the Sea
Our
dive into the middle of a forest of hydrothermal columns does not begin until
the afternoon, after our daily meeting. We are so impressed with the fantastic
formations and chimneys that the ROV team decides to extend the dive so that we
can collect all the samples we would like to have.
January 14th, 2017//May 25th, 2018Farewell, Brothers. Take Care, Thermal Blanket.
Our last activity at the Brothers volcano is
collecting three of the four thermal blankets. Unfortunately, the strong
currents prevent us from recovering the fourth, which we had deposited in the
caldera of the volcano. It must now remain in the caldera until Cornel de
Ronde’s next departure for the Brothers volcano. Perhaps the thermometer
battery will keep its charge and record the heat flow for an entire year.
Tonight, we are leaving for Rumble III, a volcano that has frequently erupted in recent decades.
Update May 2018: In March 2018 Cornel de Ronde got back to Brothers Volcano on the American RV THOMPSON and ROV JASON recovered our long lost (but not forgotten!) heat flow blanket in the pit crater atop the cone: "Was in good shape, just sitting there waiting to be picked up," Cornel said. The blanket recorded data for 2-3 months before batteries ran out.
Tonight, we are leaving for Rumble III, a volcano that has frequently erupted in recent decades.
Update May 2018: In March 2018 Cornel de Ronde got back to Brothers Volcano on the American RV THOMPSON and ROV JASON recovered our long lost (but not forgotten!) heat flow blanket in the pit crater atop the cone: "Was in good shape, just sitting there waiting to be picked up," Cornel said. The blanket recorded data for 2-3 months before batteries ran out.
January 15th-16th 2017: Rumble III
January 15th, 2017Mysterious 90-Meter Column
Because
the Rumble III volcano last erupted in 2008, and no marine expeditions have
approached it since 2011, we first wanted to explore it with an echo sounder in
order to determine whether it has changed since the last mapping.
"A volcano goes through various cycles," explains Janis Thal, "During an eruption, it gains in volume and grows, as landslides remove material, and the volcano becomes flatter," continues the hydroacoustic expert.
"Tonight, we discovered that the small cone has collapsed since the last mapping, and the only remaining nucleus is the old volcanic cone." The echo sounder showed a column of about 90 meters in height on the sea floor; this column reflects the sound signal differently than normal sea water. "This is a very unusual structure, so, it was not clear at first whether it was a volcanic eruption or a rock structure.
"It was only with the underwater vehicle, QUEST, that we were able to find out what it was; a gray stone wall suddenly rose up in front of the diving robot at a water depth of 420 meters.
We navigated along the wall and realized that it was the column that Janis Thal had spotted at night with the echo sounder, a stone column of approximately 90 meters in height with a diameter of about 75 meters. The column is the remnant of the volcanic cone after the slumping of its slopes. "Only the interior, which consists of massive cooled lava, remains standing," says the volcanologist.
“A warm, shimmering fluid, which we sampled, was leaking out of fissures in some parts of this column," says Andrea Koschinsky. "We found bacteria mats and other life forms here in contrast to the otherwise very sparsely populated, fresh volcanic rock."
"A volcano goes through various cycles," explains Janis Thal, "During an eruption, it gains in volume and grows, as landslides remove material, and the volcano becomes flatter," continues the hydroacoustic expert.
"Tonight, we discovered that the small cone has collapsed since the last mapping, and the only remaining nucleus is the old volcanic cone." The echo sounder showed a column of about 90 meters in height on the sea floor; this column reflects the sound signal differently than normal sea water. "This is a very unusual structure, so, it was not clear at first whether it was a volcanic eruption or a rock structure.
"It was only with the underwater vehicle, QUEST, that we were able to find out what it was; a gray stone wall suddenly rose up in front of the diving robot at a water depth of 420 meters.
We navigated along the wall and realized that it was the column that Janis Thal had spotted at night with the echo sounder, a stone column of approximately 90 meters in height with a diameter of about 75 meters. The column is the remnant of the volcanic cone after the slumping of its slopes. "Only the interior, which consists of massive cooled lava, remains standing," says the volcanologist.
“A warm, shimmering fluid, which we sampled, was leaking out of fissures in some parts of this column," says Andrea Koschinsky. "We found bacteria mats and other life forms here in contrast to the otherwise very sparsely populated, fresh volcanic rock."
January 15th, 2017200th Radium Sample
At
around 11:00 p.m., Bernhard Schnetger collects the 200th radium sample. Along
with René Neuholz, he obtains seawater from the CTD probe, the pump and the
diving robot, and filters the water through manganese wool. The radium is
snagged on the manganese wool, the two scientists measure it with an alpha
spectrometer. And they do all this 200 times.
"We take the manganese wool back to the laboratory in these bags, so that we can measure the long-lived radium isotopes with half-lives from just under six years to 1600 years in the laboratory," states the scientist of the Institute of Chemistry and Biology of the Marine Environment at the University of Oldenburg. "It is important to collect an enormous quantity of samples, so that we can describe the distribution of water from the hot springs to the fullest extent possible," continues the marine scientist.
To mark the occasion, he worked until dawn, processing more water samples, just like every other night. "This is actually the best thing a marine scientist can imagine: having the opportunity to obtain so many samples on a research vessel and then apply another new method."
"We take the manganese wool back to the laboratory in these bags, so that we can measure the long-lived radium isotopes with half-lives from just under six years to 1600 years in the laboratory," states the scientist of the Institute of Chemistry and Biology of the Marine Environment at the University of Oldenburg. "It is important to collect an enormous quantity of samples, so that we can describe the distribution of water from the hot springs to the fullest extent possible," continues the marine scientist.
To mark the occasion, he worked until dawn, processing more water samples, just like every other night. "This is actually the best thing a marine scientist can imagine: having the opportunity to obtain so many samples on a research vessel and then apply another new method."
January 17th-18th 2017: Brothers
January 17th, 2017Back at Brothers
The work on the Rumble III volcano was very
difficult because of the lava column which protruded steeply from the ground:
"The CTD measurements in the water column were risky, because we always
had to be careful not to collide with the column," says Maren Walter. We
use the CTD measurements to understand where the hot clouds come from and how
they disperse. "The work with the underwater robot was also made difficult
by the bottom currents," says Chief Scientist Andrea Koschinsky.
After taking a measurement of trace metals, we have returned to the Brothers volcano tonight, because the most diverse and, for our expedition, exciting hydrothermal sources are here. This morning, the underwater robot was deployed at eight o'clock, just like every day.
And the volcano did not disappoint us; once again, we found some fascinating underwater chimneys.
After taking a measurement of trace metals, we have returned to the Brothers volcano tonight, because the most diverse and, for our expedition, exciting hydrothermal sources are here. This morning, the underwater robot was deployed at eight o'clock, just like every day.
And the volcano did not disappoint us; once again, we found some fascinating underwater chimneys.
January 17th, 2017Hold on tight!
The robot gripped one of the chimneys with
both gripper arms and carried it on board in its left arm.
January 17th, 2017Spectacular Maneuver
Cornel de Ronde sits in the ROV container as
the chimney is recovered and is impressed with the maneuver. "The fact
that the ROV pilots have succeeded in retrieving this chimney is a testament to
their abilities," says the geophysicist with admiration. "I don’t think
that a maneuver like that has ever been done by anyone; that really impressed
me."
January 17th, 2017Dialog with the Robot
Volker Ratmeyer removes QUEST from the
chimney after the dive. "With this vehicle, you can perform very
advanced tasks which allow you to collect extraordinary samples," enthuses
Volker Ratmeyer about the haul.
January 17th, 2017A Great Achievement by the ROV Team
"What impressed me the most is that the
robot managed to bring this massive column on board in spite of the rough
sea," says Andrea Koschinsky.
"This is a reflection of the outstanding performance of the ROV team throughout the cruise," extol the Chief Scientist, Volker Ratmeyer and his team from MARUM.
It was also an exciting trip for the underwater robot pilots, reports Volker Ratmeyer: "This was already a very demanding cruise, because a lot of additional scientific equipment had been installed on the vehicle." For the last two days, the ROV team has been busy stowing QUEST in its four containers, so that it can be transported to Bremen intact.
"This is a reflection of the outstanding performance of the ROV team throughout the cruise," extol the Chief Scientist, Volker Ratmeyer and his team from MARUM.
It was also an exciting trip for the underwater robot pilots, reports Volker Ratmeyer: "This was already a very demanding cruise, because a lot of additional scientific equipment had been installed on the vehicle." For the last two days, the ROV team has been busy stowing QUEST in its four containers, so that it can be transported to Bremen intact.
January 17th 2017Sample Inventory
Tomorrow is already the last ROV dive. Then,
we will enjoy one last, live deep-sea transmission.
But now, we need to empty and clean the laboratories. Meanwhile, we also have to go back to writing packing lists, in which we neatly list every sample we want to transport to Germany. On top of that, each individual crate must also be stowed in the correct container, and this must be meticulously documented. Chief Scientist Andrea Koschinsky completes forms documenting the cruise and writes reports on the onboard work schedule.
But now, we need to empty and clean the laboratories. Meanwhile, we also have to go back to writing packing lists, in which we neatly list every sample we want to transport to Germany. On top of that, each individual crate must also be stowed in the correct container, and this must be meticulously documented. Chief Scientist Andrea Koschinsky completes forms documenting the cruise and writes reports on the onboard work schedule.
January 18th, 2017The Last Dive
The 19th and final dive brought us another
"first." Never before has an underwater robot or submarine reached
the previously unknown valley floor of the 1,850-meter-deep volcanic caldera.
“We glide over sediment structures whose ripple surfaces map the strong bottom
currents,” explains Andrea Koschinsky. All we see here are a few shrimp and
fish. The closer we get to the caldera wall, the more large boulders appear in
the ROV’s field of view. These have probably fallen from the wall into the
caldera.
On the caldera wall, we encounter mineralization terraces, and at the edge of the bluff, we can take a look under a black smoker. The rock under the chimney consists of a large quantity of sulfide. The geologists are delighted that they can take samples from all the zones of a smoker here, and in the evening, they immediately begin to slice the rocks.
On the caldera wall, we encounter mineralization terraces, and at the edge of the bluff, we can take a look under a black smoker. The rock under the chimney consists of a large quantity of sulfide. The geologists are delighted that they can take samples from all the zones of a smoker here, and in the evening, they immediately begin to slice the rocks.
January 19th-20th 2017: Transit to Auckland
January 19th 201732 Years of Cooking for Marine Research
Cruise SO253 is the last research cruise for
SONNE Cook Frank Tiemann, who will retire after the cruise. He was head cook on
German marine research vessels for 32 years. "I have traveled around the
world twice, I’ve seen great harbors, and have been able to take vacations on
the cruises now and then," says Tiemann of his busy professional life,
"I would do it all again." After five strenuous weeks on board, the
ardent angler from Lübeck will spend a few days fishing in Auckland before
returning to Germany.
On the last expedition of his life, the cook "broke" 5,350 eggs. We would like to thank you, Frank, for your commitment on this cruise. All the best for your retirement!
On the last expedition of his life, the cook "broke" 5,350 eggs. We would like to thank you, Frank, for your commitment on this cruise. All the best for your retirement!
January 19th 2017I pack my container...
... and empty innumerable boxes full of
samples and laboratory equipment.
The working deck looks like an anthill; we tirelessly pack boxes and drag them toward the container.
The working deck looks like an anthill; we tirelessly pack boxes and drag them toward the container.
January 19th 2017 Numbers, please!
January 19th 2017 Numbers, please!
Fullscreen
0.3 nanomoles is the iron concentration in
the surface water away from the volcanoes. The highest iron concentration in
the Brothers volcano is over 10 million nanomoles.
3 containers with laboratory equipment and samples and 4 ROV containers will be transported back to Germany by ship.
6 liters of concentrated hydrochloric acid were used by the marine geochemists from the ICBM (Institute for Chemistry and Biology of the Marine Environment) to acidify over 1,000 samples of dissolved organic carbon.
19 dives with the underwater robot ROV QUEST
22 ten-liter bottles are located on the ship's own CTD probe.
24 pearls were found by the marine biologists in the mussel species Gigantidas Gladius.
51 is the number of times that the water on the Brothers volcano has been sampled with CTD probes in the last 17 years. This makes it one of the most thoroughly studied underwater volcanoes in the world. 10 of the 51 measurements were carried out on this cruise.
71 people participated in the trip: 39 scientists, 31 crew members and one journalist.
85 centimeters per second was the strongest flow we measured during the cruise. Maren Walter detected this southeastern current in the upper 20 meters above the Brothers volcano.
99 games of table tennis were played out during the expedition. The tournament consisted of eleven rounds with nine games each and was organized by Christian Borowski. At the end of the cruise, those finishing in first and last place will compete against those finishing in second place and second last place.
120 copper tubes were filled with samples for helium analysis by Maren Walter and Andreas Türke.
150 kilograms of rock samples from the seabed have been brought on board by the underwater robot QUEST.
312 degrees centigrade is our record for temperature; this was the temperature of a hydrothermal spring at the Brothers volcano.
1,100 decays per minute per hundred liters of water is the highest radioactivity of a water sample from the Brothers volcano as measured by Bernhard Schnetger.
2,000 pair of gloves were used by Sylvia Sander and Rebecca Zitoun in the trace-metal-free container.
5,350 eggs were eaten over the course of the cruise.
5,720 liters of water samples were collected with the rosette water sampler. We filled 22 ten-liter bottles with seawater for CTD measurements 26 times.
3 containers with laboratory equipment and samples and 4 ROV containers will be transported back to Germany by ship.
6 liters of concentrated hydrochloric acid were used by the marine geochemists from the ICBM (Institute for Chemistry and Biology of the Marine Environment) to acidify over 1,000 samples of dissolved organic carbon.
19 dives with the underwater robot ROV QUEST
22 ten-liter bottles are located on the ship's own CTD probe.
24 pearls were found by the marine biologists in the mussel species Gigantidas Gladius.
51 is the number of times that the water on the Brothers volcano has been sampled with CTD probes in the last 17 years. This makes it one of the most thoroughly studied underwater volcanoes in the world. 10 of the 51 measurements were carried out on this cruise.
71 people participated in the trip: 39 scientists, 31 crew members and one journalist.
85 centimeters per second was the strongest flow we measured during the cruise. Maren Walter detected this southeastern current in the upper 20 meters above the Brothers volcano.
99 games of table tennis were played out during the expedition. The tournament consisted of eleven rounds with nine games each and was organized by Christian Borowski. At the end of the cruise, those finishing in first and last place will compete against those finishing in second place and second last place.
120 copper tubes were filled with samples for helium analysis by Maren Walter and Andreas Türke.
150 kilograms of rock samples from the seabed have been brought on board by the underwater robot QUEST.
312 degrees centigrade is our record for temperature; this was the temperature of a hydrothermal spring at the Brothers volcano.
1,100 decays per minute per hundred liters of water is the highest radioactivity of a water sample from the Brothers volcano as measured by Bernhard Schnetger.
2,000 pair of gloves were used by Sylvia Sander and Rebecca Zitoun in the trace-metal-free container.
5,350 eggs were eaten over the course of the cruise.
5,720 liters of water samples were collected with the rosette water sampler. We filled 22 ten-liter bottles with seawater for CTD measurements 26 times.
The fabulous world of QUEST
January 20th 2017Thank you!
We have now arrived in Auckland and at the
end of our cruise. We are delighted that you have accompanied us and that so
many of you have given us feedback on this blog. This page will continue to
serve as documentation of the cruise. Now that we have a fast Internet
connection on land, we can finally publish all the audios, videos and 360
degree panoramas that we created on the cruise. So please check back with us
from time to time.
We would like to take this opportunity to thank the Federal Ministry of Education and Research for funding the cruise. Special thanks go to Captain Lutz Mallon and the crew of the SONNE who were always there to assist us during our research. For us, the trip was an extraordinary experience that we will probably remember for the rest of our lives. We have now arrived in Auckland and at the end of our cruise. We are delighted that you have accompanied us and that so many of you have given us feedback on this blog. This page will continue to serve as documentation of the cruise. Now that we have a fast Internet connection on land, we can finally publish all the audios, videos, and 360 degree panoramas that we created on the cruise. So please check back with us from time to time.
We would like to take this opportunity to thank the Federal Ministry of Education and Research for funding the cruise. Special thanks go to Captain Lutz Mallon and the crew of the SONNE who were always there to assist us during our research. For us, the trip was an extraordinary experience that we will probably remember for the rest of our lives.
We would like to take this opportunity to thank the Federal Ministry of Education and Research for funding the cruise. Special thanks go to Captain Lutz Mallon and the crew of the SONNE who were always there to assist us during our research. For us, the trip was an extraordinary experience that we will probably remember for the rest of our lives. We have now arrived in Auckland and at the end of our cruise. We are delighted that you have accompanied us and that so many of you have given us feedback on this blog. This page will continue to serve as documentation of the cruise. Now that we have a fast Internet connection on land, we can finally publish all the audios, videos, and 360 degree panoramas that we created on the cruise. So please check back with us from time to time.
We would like to take this opportunity to thank the Federal Ministry of Education and Research for funding the cruise. Special thanks go to Captain Lutz Mallon and the crew of the SONNE who were always there to assist us during our research. For us, the trip was an extraordinary experience that we will probably remember for the rest of our lives.
Scientists
Prof. Dr. Andrea Koschinsky
Research Assoc. Prof. Dr. Sylvia Sander
Dr. Valerie Stucker
Rebecca Zitoun
Benedikt Geier
Dr. Charlotte Kleint
Jan Hartmann
Nico Fröhberg
Dr. Lucy Stewart
Dr. Andreas Türke
Dr. Maren Walter
Prof. Dr. Wolfgang Bach
Prof. Dr. Cornel de Ronde
Prof. Dr. Harald Strauß
Marie Heidenreich
Stefan Sopke
Dr. Christian Borowski
Corinna Oster
René Neuholz
Scroll up
Scroll left
Scroll right
Scroll down
Prof. Dr. Andrea Koschinsky
Research Assoc. Prof. Dr. Sylvia Sander
Dr. Valerie Stucker
Rebecca Zitoun
Benedikt Geier
Dr. Charlotte Kleint
Jan Hartmann
Nico Fröhberg
Dr. Lucy Stewart
Dr. Andreas Türke
Dr. Maren Walter
Prof. Dr. Wolfgang Bach
Prof. Dr. Cornel de Ronde
Prof. Dr. Harald Strauß
Marie Heidenreich
Stefan Sopke
Dr. Christian Borowski
Corinna Oster
René Neuholz
Prof. Dr. Andrea Koschinsky
Prof. Dr. Andrea Koschinsky
Andrea Koschinsky is the chief scientist of cruise
SO253. Together with other organisers, she proposed this cruise to the BMBF and
coordinates the different scientific activities. She organised the cruise in communication
with the Control Station for German Research Vessels, the shipping company
Briese, the Master of the RV Sonne, and New Zealand authorities. This includes
the technical requirements for the cruise, such as which pieces of equipment
are available on board and which equipment scientists would need to bring themselves.
About 6 months before the cruise, she applied for permission to carry out
scientific work in the Kermadec volcanic arc via the Office of Foreign Affairs.
During the cruise she coordinates the complex research program, including the
deployment of the various devices, and acts as the interface between scientists
and the ship’s leadership.
Prof. Dr. Andrea Koschinsky
Dr Koschinsky‘s research focus is the impact of
hydrothermal fluids on the trace element budget of the oceans. “We track how
chemical elements, especially trace metals from hydrothermal vents, mix with
ambient seawater and are dispersed in the ocean. We want to find out how much
of the hydrothermal element input settles again in the vicinity of the
hydrothermal vents, and how much is transported into the open ocean where it can
contribute to the biogeochemical cycles. For these processes, iron plays a key
role because as a micro-nutrient it is often the limiting factor for plankton
growth in surface waters. If hydrothermal iron is being transported up into the
upper water layers, this would mean that hydrothermal processes on the seafloor
have a direct impact on life in the upper water column of the ocean.”
Prof. Dr. Andrea Koschinsky
Dr Koschinsky is a marine geochemist. She teaches and conducts
research at Jacobs University Bremen. Since her first research cruise as a PhD
student in 1990, she has sailed on every ocean in the world. Her research looks
at trace metals in different marine systems and investigates their interactions
with biological processes. “During a previous research cruise, for example, we studied
how mussels at hydrothermal vent sites deal with the high load of trace metals.
We found that these mussels often store large quantities of heavy metals in
their tissues, such as the gills and digestive gland, without being harmed by
them. Furthermore, we found that hydrothermally-associated microbes are able to
detoxify copper by excreting organic molecules that bind to it.”
Dr. Valerie Stucker
Dr. Valerie Stucker
Valerie
Stucker manages the marine geochemistry laboratory at the New Zealand research
institute GNS Science in Wellington. She is responsible for fluid chemistry and
analysing the composition of water samples from the Kermadec volcanic arc and
hot springs in the North Island of New Zealand. “These hot fluids tell us a lot
about what’s happening underground. We can say, for example, which interactions
have occurred in the subsurface between the water and rocks, by measuring dissolved
minerals,” she explains.
Dr. Valerie Stucker
On cruise
SO253, Valerie takes samples with a titanium major sampler. If the ROV has
found a hydrothermal vent, it picks up the sampler with its manipulator arm
from a storage container the front of the ROV. “I look for the hottest fluids
we can sample. The best samples are those that haven’t been mixed too much with
seawater. To make sure we achieve this, we stick the snorkel of the sampler as
far as we can into the vent outflow,” says the chemist.
At this moment Cornel de Ronde enters and tells us that the ROV has found hydrothermal vents at Brothers Volcano. On the TV monitor we see thick clouds of smoke from the vents on the ocean floor. Valerie has to hurry to the ROV container to supervise sampling with the titanium majors. “I will oversee the sampling and make sure the samplers are working properly,” she explains as she leaves.
At this moment Cornel de Ronde enters and tells us that the ROV has found hydrothermal vents at Brothers Volcano. On the TV monitor we see thick clouds of smoke from the vents on the ocean floor. Valerie has to hurry to the ROV container to supervise sampling with the titanium majors. “I will oversee the sampling and make sure the samplers are working properly,” she explains as she leaves.
Dr. Valerie Stucker
When
Valerie is not working on board, she spends her free time training for her
hobby, handstands and acrobatics. “Unfortunately, it’s really difficult to do
handstands with all the ship movement, so I have been doing more headstands,”
Valerie says. She really enjoyed the New Year’s celebrations on board. “It was
lovely that we could all get together as a group, since there wasn’t any
sampling that day. It made New Year’s Eve special, since we couldn’t spend it
at home with our families and friends.”
Christmas was also exciting on board for the chemist. “On Christmas Day we passed one of the Kermadec Islands, Raoul Island, which was like a special Christmas present for me, because it‘s one of my favourite places in the whole world,” she says excitedly. Few people make it to the remote island, and the seven people who live there rarely have visitors. In April the scientist visited there for four days. “It was one of the most wonderful places I’ve ever been. The island is a volcano and it’s covered with trees and tropical plants with beautiful beaches. If you stand on the rim and look down into the crater, you can see Blue Lake and Green Lake,” she describes.
Christmas was also exciting on board for the chemist. “On Christmas Day we passed one of the Kermadec Islands, Raoul Island, which was like a special Christmas present for me, because it‘s one of my favourite places in the whole world,” she says excitedly. Few people make it to the remote island, and the seven people who live there rarely have visitors. In April the scientist visited there for four days. “It was one of the most wonderful places I’ve ever been. The island is a volcano and it’s covered with trees and tropical plants with beautiful beaches. If you stand on the rim and look down into the crater, you can see Blue Lake and Green Lake,” she describes.
Dr. Lucy Stewart
Dr. Lucy Stewart
Lucy
Stewart works as a postdoc in the New Zealand research institute GNS Science.
The microbiologist specialises in microorganisms which live in hot springs and
hydrothermal vents. At hydrothermal vents, gases, sulphur, and metals are
released into the sea, “much more than in the rest of the oceans,” Lucy says.
She is especially interested in autotrophic microbes. Autotrophs are organisms
which can obtain the energy that they need to live from inorganic molecules
like sulphur and hydrogen. The microbiologist is fascinated by how the living
world interacts with geology. “Two and a half billion years ago, there was
almost no free oxygen on Earth. At some point living organisms began to make
oxygen through photosynthesis. We can see this in ancient rocks because
suddenly at this time oxidised iron, or rust, begins to appear.”
Dr. Lucy Stewart
With her
current project she would like to find out which warmth-loving or
‘thermophilic’ microbes are present in the waters and on the islands near New
Zealand. She is looking for bacteria and archaea which live in hot water, at
temperatures above fifty degrees Celsius. They are present in hot springs on
the Kermadec islands of Raoul Island and Curtis Island, and also on the active
volcanic island White Island, close to New Zealand. These thermophilic microbes
are able to make a home for themselves in the warm rocks surrounding underwater
volcanoes. When seawater is drawn into the rocks and then released back into
the ocean, it carries the microbes with it. Lucy takes her water samples from
these diffuse fluids near hydrothermal vents.
Dr. Lucy Stewart
In her
laboratory on the ship she uses an oven to incubate bacteria at seventy degrees
Celsius. To figure out if the bacteria are using iron or sulphur to support
themselves, she incubates them with each element. In her home laboratory, she
will extract the DNA from the bacteria to find out which species they are.
“In New Zealand environmental conservation is a sadly important topic and many people are worried about the birds, lizards, and plants which live here. Similarly, we also have a diverse range of microorganisms, many of which are probably unique, but we pay them very little attention.”
“In New Zealand environmental conservation is a sadly important topic and many people are worried about the birds, lizards, and plants which live here. Similarly, we also have a diverse range of microorganisms, many of which are probably unique, but we pay them very little attention.”
Research Assoc. Prof. Dr. Sylvia Sander
Research Assoc. Prof. Dr. Sylvia Sander
Sylvia
Sander is a research associate professor at the University of Otago on New Zealand’s
South Island. Born and bred in south-west Germany, she has lived and worked for
the last 15 years in New Zealand. In-between, she lived in the Netherlands. “For
me it was too crowded there – I wanted to live in a less populated country,” says
the chemist, grinning, about her new home country. As a marine chemist, she
studies the distribution and form in which heavy metals are present in the
ocean. ”For example, iron occurs in different size fractions, truly dissolved,
as buoyant nanoparticles, and as particles which are large enough to sink to
the seafloor,“ she explains. ”Additionally, there are different chemical forms
of iron. The majority of dissolved iron atoms
form compounds with carbon-rich molecules. Since free iron is very insoluble
in seawater, even more of the dissolved iron would otherwise form particles
large enough to sink.” Iron is important in the sea, she explains. “Iron is an
essential micro nutrient for all living organisms on Earth – if there is not
enough iron available, phytoplankton won’t grow. Phytoplankton is the basis of
the entire marine food web. Additionally, carbon dioxide is taken up by
phytoplankton during photosynthesis and under certain conditions this CO2-carbon
can be buried in the sea floor. So phytoplankton and iron have the capacity to
influence our climate.”
Research Assoc. Prof. Dr. Sylvia Sander
„On this
expedition we are trying to understand how iron from hydrothermal vents is transported
into the open ocean,“ says Sylvia Sander. The iron concentration in hot vents
is about one million times higher than that in the open ocean. “As soon as the
iron is released into the cold, oxygen rich seawater most of it becomes
insoluble and precipitates. It can form these iron crusts we saw today at Brothers
Volcano,” she continues. ”Until recently it was assumed that all hydrothermal
iron is removed from the seawater close to the vent site and does not reach far
into the surrounding seawater. Today, however, we know that hydrothermal iron
plumes can be transported horizontally over thousands of kilometres.” Most
hydrothermal vents are several thousand meters deep. The iron rich plume
usually does not rise to the surface. Sylvia Sander describes her research aim
during this expedition: “Here at the Kermadec Arc, some of the vents are shallow enough that the
iron plume can reach right into the upper water layers, where phytoplankton
lives. We would like to understand how much iron is actually reaching the photic
zone.”
Research Assoc. Prof. Dr. Sylvia Sander
A 20-year long collaboration and friendship connects her
with the chief scientist, Andrea Koschinsky. “Actually, I became a marine
scientist because of Andrea. She wanted to use an analytical method I developed
during my PhD. We met and she offered me the opportunity to join a hydrothermal
cruise to the North Fiji basin“ Sylvia Sander remembers from her first
expedition. “What impressed me most during that first cruise was the
multidisciplinarity: geologists, biologists, and chemists, all working on one common
goal. We spend four weeks together on the ship and inevitably you learn a lot
about the research of other participants. It opens your horizons and you pick
up a lot from other research areas.“
Dr. Christian Borowski
Dr. Christian Borowski
Dr. Christian Borowski
Benedikt Geier
Benedikt Geier
Benedikt Geier
is a PhD student in the Symbiosis Department at the Max Planck Institute for
Marine Microbiology in Bremen. His research focuses on the symbiotic
association between deep-sea mussels and chemosynthetic bacteria. These
bacteria are located in the gills of the mussels and benefit from the constant
flow of nutrients generated by the mussels through filtration. The mussels, in
return, feed on the metabolic waste products of the bacteria.
Benedikt Geier
Benedikt uses a
combination of microscopic imaging techniques to determine which molecules come
from the bacteria and are beneficial for the mussels. By locating the symbiotic
bacteria in the mussel gills and comparing these images with images of molecule
distributions, he can see which molecules are produced by the bacteria and
which by the mussels. in this way, he tries to understand how these close
associations between symbiotic organisms in the deep-sea function.
Dr. Charlotte Kleint, Jan Hartmann, and Nico Fröhberg
Dr. Charlotte Kleint, Jan Hartmann, and Nico Fröhberg
Charlotte
Kleint, Jan Hartmann and Nico Fröhberg are geochemists working with a team from
Jacobs University Bremen. On this cruise, they are taking samples of hot
hydrothermal fluids at different distances from the original hot source.
Using the ROV QUEST, they dive as close as possible to the vent outlet to take fluid samples with a titanium nozzle directly at the point of discharge into the surrounding ocean. Additionally, QUEST takes samples in the rising hydrothermal plume, where fluids mix with seawater with increasing distance from their source. As soon as the fluid has mixed with enough seawater to have the same density, it does not rise further towards the sea surface but is instead transported horizontally by ocean currents. With a CTD probe, which detects turbidity, they can measure the extent of the plume at greater distances. “We follow the fate of the fluids in the ocean, so to speak,” explains PhD student Jan Hartmann. Jan is a PhD student at the University of Heidelberg and is supporting the fluid chemists working under Andrea Koschinsky as a guest scientist.
Using the ROV QUEST, they dive as close as possible to the vent outlet to take fluid samples with a titanium nozzle directly at the point of discharge into the surrounding ocean. Additionally, QUEST takes samples in the rising hydrothermal plume, where fluids mix with seawater with increasing distance from their source. As soon as the fluid has mixed with enough seawater to have the same density, it does not rise further towards the sea surface but is instead transported horizontally by ocean currents. With a CTD probe, which detects turbidity, they can measure the extent of the plume at greater distances. “We follow the fate of the fluids in the ocean, so to speak,” explains PhD student Jan Hartmann. Jan is a PhD student at the University of Heidelberg and is supporting the fluid chemists working under Andrea Koschinsky as a guest scientist.
Dr. Charlotte Kleint, Jan Hartmann, and Nico Fröhberg
With an initial chemical
characterization on board the ship, the fluid chemists can already tell a lot
about the properties and formation of these hot solutions. “We see an increased chloride content in our samples.
Chloride is the main component of sea salt, so our sample represents a salty
brine formed by boiling fluids. We have also found that our samples to date are
extremely acidic, with pH values below 2 – more acidic than gastric acid or Coke!”
explains Jan Hartmann. “These acidic fluids dissolve portions of the rocks below the seafloor, which we can see
in the increased magnesium content of the fluids,” adds Nico Fröhberg. Nico is
writing his Bachelor´s thesis at Jacobs University about the chemical characterization of these
extraordinary hydrothermal fluids.
Dr. Charlotte Kleint, Jan Hartmann, and Nico Fröhberg
Prof. Dr. Cornel de Ronde
Prof. Dr. Cornel de Ronde
Cornel de
Ronde is a geologist at GNS Science, a New Zealand research institute. He leads
the marine minerals group there, studying how copper, zinc, gold, silver, and
lead crystallise from hot fluids. His main study area is the Kermadec volcanic
arc directly to the north of New Zealand, where these metals most frequently
occur in hydrothermal systems. “It all comes down to the temperature: the
hotter the fluids, the more metals are transported within them, such as copper
and gold,” the New Zealander explains. The water, in the deep sea a kilometre
and a half down, starts to boil at around 345 degrees Celsius. In shallower depths the water is already
boiling at lower temperatures, so it can’t get as hot. “To find copper, we have
to look for very hot vents, with temperatures reaching at least 270 degrees.”
Prof. Dr. Cornel de Ronde
"If we find
large deposits of copper and gold right on our front doorstep here in New
Zealand, I’m interested as a scientist to figure out how these metals are
transported out of the cores of volcanoes. We also study their composition, so
we can estimate which raw materials they contain,” he continues. “We have to
decide if these deposits are really going to be mined or not.”
The New Zealander has studied volcanic arcs all over the world and would like to use his research to come up with solutions to some of the greatest problems of our time. “The solutions for these problems – energy, food, and minerals – lies in the oceans,” he is convinced.
The New Zealander has studied volcanic arcs all over the world and would like to use his research to come up with solutions to some of the greatest problems of our time. “The solutions for these problems – energy, food, and minerals – lies in the oceans,” he is convinced.
Prof. Dr. Cornel de Ronde
“My
personal highlight for this research cruise has been diving at Haungaroa.
There, we were following a signal that Sharon Walker and I measured fourteen
years ago at this site. At that time we had a CTD to measure hydrothermal plume
signals with, but unfortunately no ROV,” the New Zealander reminisces. Sharon Walker,
who is also a participant on our cruise, met Cornel in 1994 on his first
research voyage with an American ship on the East Pacific Rise.
“Discovering new things is, for me, still a really special thing. I love science a lot, but I wouldn’t be a scientist if there wasn’t so much adventure and fun in it,” Cornel says. “The greatest pleasure of it for me is doing public lectures and bringing these marvels to my audience. That’s when it really becomes clear to me how out of the ordinary it is, what I get to see and experience on these research expeditions.” We also get the chance to see Cornel’s skills as an entertainer on this trip, as soon as he sits down in the ROV control container and provides colourful and knowledgeable commentary on the pictures from the underwater camera.
“Discovering new things is, for me, still a really special thing. I love science a lot, but I wouldn’t be a scientist if there wasn’t so much adventure and fun in it,” Cornel says. “The greatest pleasure of it for me is doing public lectures and bringing these marvels to my audience. That’s when it really becomes clear to me how out of the ordinary it is, what I get to see and experience on these research expeditions.” We also get the chance to see Cornel’s skills as an entertainer on this trip, as soon as he sits down in the ROV control container and provides colourful and knowledgeable commentary on the pictures from the underwater camera.
Prof. Dr. Wolfgang Bach
Prof. Dr. Wolfgang Bach
Wolfgang Bach is
petrologist in the Department of Geosciences of the University of Bremen. Petrologists study how rocks come about and
how they interact with their surrounding. WB investigates how rock form, for
instance in volcanic eruptions or when tectonic plates collide and mountain
ranges form.
Prof. Dr. Wolfgang Bach
During expedition SO253, he investigates the interactions between seawater and rocks. The seafloor continuously has seawater flow down into the oceanic crust to be expelled in hot springs. In the volcanic Kermadec Arc, the intensity of the chemical exchange between circulating seawater and rocks is particularly intense: “The volcanos spit out carbon dioxide and sulfur dioxide. The latter reacts with water to form sulfuric acid and sulfur. We have collected samples of native sulfur directly from hot sulfuric acid springs. In the pores of the sample, one can find minerals that have formed from the emitted volcanic gas.” Wolfgang Bach does not only collect rock samples with the ROV QUEST but also samples the hot vent solutions: “Like a forensic scientist, we can figure out what is happening deep inside the volcano by reading the message encoded in the chemical and isotopic composition of the solutions.” A challenge in sampling the vent solutions is keeping the large amounts of dissolved gas from bubbling out during ascent of the ROV. This is why the petrologists onboard SONNE use a special sampler with thick walls of steel that can hold a pressure of 400 bar. This pressure corresponds to a depth of 4000 m in the oceans.
Prof. Dr. Wolfgang Bach
Wolfgang Bach can also answer the question why seawater is salty: When rainwater trickles into the rocky ground, it dissolved part of the rock. That water is eventually discharged into the oceans by rivers. The sunlight has the water part of those solutions turned into vapor; the salty part remains in the oceans. The vapor condenses into rain water and a new cycle begins. Circulation of seawater within the oceanic crust also affects the composition of our oceans. But this does not have the oceans get saltier with time! This is because the seafloor constitutes a sink for many elements: magnesium, potassium, and carbon, for instance, are stored within the ocean crust to depths of many kilometers.
Rebecca Zitoun
Rebecca Zitoun
Rebecca Zitoun is a PhD candidate at the
University of Otago in New Zealand. Her work includes the quantification of
copper concentrations in different marine environments, specifically determining
its toxicity thresholds for mussels and other marine organisms. “In the water
column, all metals are present in different chemical forms. Copper is mostly
present in the water column bound strongly to other molecules. In this form,
it’s less detrimental to organisms. Only free copper ions and/or weakly bound
copper are acutely poisonous in smal amounts.”
Rebecca Zitoun
Every country has their own threshold
values for how much copper is allowed to be present in the water. These values
are critical for the health of the oceanic ecosystem as well as for
aquacultures. “To date, most studies of copper stress in the aquatic
environment only look at the total copper in the system, which is easier and
less time consuming to measure, but does not reflect the actual metal toxicity
marine organisms are potentially exposed to. I am quantifying not only the
total amount of copper but also measuring the concentrations of free and weakly-bound
copper in the water column. With my research, I will be able to show whether free
copper ions are key drivers of ecosytem health and function.“ Rebecca Zitoun hopes
that her studies will be used when creating future water quality standards for
marine environments.
Rebecca Zitoun
On the cruise, Rebecca Zitoun will be
sampling hot hydrothermal fluids and analysing the ratio of strong to weakly
bound copper in them. “I expect that here in the sampling area, copper is
predominantly strongly complexed. Normally the copper concentrations around hot
vents are so high that if the copper was in its free or weakly-bound forms, the
survival of organisms living nearby would be highly constrained. In reality, however, hydrothermal vent areas
flourish with life.“
Prof. Dr. Harald Strauß
Prof. Dr. Harald Strauß
Harald
Strauss is a geochemist at the University of Münster. He is reporting about his
cruise on the Sonne on a blog on the university website.
Prof. Dr. Harald Strauß
During this
research cruise to the submarine hydrothermal vents along the Kermadec volcanic
arc, he will be investigating the sulfur-rich vent fluids and how these
contribute to the sulfur budget of the ocean.
Marie Heidenreich
Marie Heidenreich is science journalist and writes this blog. She is responsible for all the public outreach activities of SONNE cruise SO253. Marie has studied Life Science and Cultural Anthropology and works for Project Management Juelich.
Dr. Maren Walter
Dr. Maren Walter
Maren Walter works as a scientist at the Institute for
Environmental Physics and the MARUM Center for Marine Environmental Sciences at
the University of Bremen. As a physical oceanographer she studies waves, not
the ones at the sea surface but the internal waves in the interior of the
ocean. "I am interested how these small scale processes influence the
large scale circulation ad stratification of the ocean."
Dr. Maren Walter
During the expedition SO253 she looks into the dispersal of water and other output from the hydrothermal vents into the ocean. "We observe the currents and the stratification in the water and use these information to determine vertical mixing", the researcher explains. "The stratification of the ocean depends on the temperature, salinity and the pressure. These quantities are measured with the CTD sonde." CTD is the abbreviation for Conductivity, Temperature und Depth. Attached to the CTD frame are two current meters, the so-called ADCPs, that measure the speed and direction of the currents using underwater sound. Although she participated in her first research cruise as a student in 1994 and took part in 23 cruises since then, she this one is still a first for her: "Until now I have worked on mid-oceanic ridges", the physicists reports, "studying underwater volcanoes is new to me - we have to be very careful using our instruments in the steep craters. Just now we have navigated a towed CTD around a 90m high pillar in the Rumble III crater."
Dr. Maren Walter
Her life as a marine scientist fulfils a lifelong dream for Maren: "As a child I always wanted to go to sea, following the footsteps of my father, who was a captain. During my studies of physics I then learned that I can reconcile doing natural sciences and sea travel by becoming an oceanographer, so I took up physical oceanography in Kiel. I love going to sea and being part of a team of researchers from various disciplines that works towards understanding the system Earth."
René Neuholz
René Neuholz
René
Neuholz is a PhD candidate at the Institute for Chemistry and Biology of the
Marine Environment at the University of Oldenburg. He studies the dispersal of
water from hydrothermal vents by using the radioactive element radium. Radium occurs
naturally in every rock on earth, as it is generated by uranium decay. Large
amounts of radium are present in the seafloor. If seawater infiltrates into the
sediment, it dissolves radium from the rocky material. Deep in the oceanic
crust, the water gets heated up and is finally released through hydrothermal
vents, carrying the dissolved radium with it.
“We are collecting a hot and undiluted fluid sample. The hydrothermal system of Macauly showed pretty high concentrations of radium.”, said René excitedly. “We are also sampling the water column at different distances from the hydrothermal vents and we can see that the radium concentration decreases with distance. The reason is firstly that the hydrothermal fluid gets quickly diluted, and secondly the radioactive decay of the radium. As we are know the speed of decay, it is possible to calculate the age of the samples. Finally, we hope to be able to say that ‘to travel a distance of 500 meters, the hydrothermal fluids need a certain amount of time’. With that, we won´t just know the age of the sample, we will also know the transport velocity of the hydrothermal fluids,” he continues.
“Tracing fluxes of water with radium is a very practical concept for marine sciences, as this method uses an element which is already present in the water. “ If flow velocities of smaller rivers need to be determined, often saltwater is introduced as a tracer on one point and the travel time of the saltwater is measured over some distance. In the deep sea colored fluid is used to visualize water filtration by sponges. We are using an element that occurs naturally in the water.”
“We are collecting a hot and undiluted fluid sample. The hydrothermal system of Macauly showed pretty high concentrations of radium.”, said René excitedly. “We are also sampling the water column at different distances from the hydrothermal vents and we can see that the radium concentration decreases with distance. The reason is firstly that the hydrothermal fluid gets quickly diluted, and secondly the radioactive decay of the radium. As we are know the speed of decay, it is possible to calculate the age of the samples. Finally, we hope to be able to say that ‘to travel a distance of 500 meters, the hydrothermal fluids need a certain amount of time’. With that, we won´t just know the age of the sample, we will also know the transport velocity of the hydrothermal fluids,” he continues.
“Tracing fluxes of water with radium is a very practical concept for marine sciences, as this method uses an element which is already present in the water. “ If flow velocities of smaller rivers need to be determined, often saltwater is introduced as a tracer on one point and the travel time of the saltwater is measured over some distance. In the deep sea colored fluid is used to visualize water filtration by sponges. We are using an element that occurs naturally in the water.”
Dr. Andreas Türke
Dr. Andreas Türke
Andreas
Türke works as a postdoc at the University of Bremen, Germany. He analyzes the
distribution of chemicals in the water column that are released from
hydrothermal vents on the seafloor. “Seawater is layered similarly to a
colorful cocktail. I am interested in the mixing between the individual layers
within the ocean”, Andreas explains.
Dr. Andreas Türke
He measures
helium distribution to distinguish mixing processes between different water
layers. There are two forms of helium: a light isotope and a heavy isotope. The
heavy isotope is more abundant in the atmosphere, whereas the light isotope is
released from the Earth’s interior and introduced into seawater by hydrothermal
activity. Andreas uses helium isotopes to study mixing processes between water
layers and the atmosphere.
Dr. Andreas Türke
“Helium is
a useful tool to identify up-flowing water masses which are rich in nutrients, such
as iron.” Iron plays a key role in the ocean, as it is often a limiting factor
for algal growth.
Stefan Sopke
Stefan Sopke
Stefan Sopke has been working as technician in the
Department of Geosciences of the University of Bremen fro 23 years. In the
Petrology of the Ocean Crust research group, he is in charge of the electron
microprobe, with which one can analyze mineral compositions: „The first step is
the making of a polished rock slide, only 30 microns thick. The electron microprobe measures the
concentrations of elements in these slides.“, explains the certified technician. The electron microprobe will tell you, for
example, if the smoker sample we took yesterday contains Cu-bearing minerals“
reports Sopke, and point to a sample that lies on the table in front of
him. With this method, I can not only
tell you how much of an element is present in a sample, but can also produce
images of element distriution as well as secondary electron and backscatter
electron images, like in an secondary electron microscope.“ Besides this
assignment, he also supports and consults the scientists in designing and
conducting laboratory experiments.
Stefan Sopke
During the expedition, he measures the contents of hydrogena nd methane dissolved in the water samples brought onboard. For all the samples that come up every day with the ROV, we need eight hours before all the measurements are completed.“ Says Sopke. His working hours are between 8 p.m. and 3 a.m. During the day, he evaluates the results of the measurments and prepares and calibrates the gas chromatograph for the next round of measurements.
Stefan Sopke
Prior to the expedition, I was in charge of ordering and securing all the materials and material safety sheets as well as the shipping logistics for our working group. In the month before the containers were shipped, I had little time for anything else.“, he says with a smirk on his face. „One often breaks a sweat, then, when you are told by the suppliers that they’ll be late with a shipment, because the day the container leaves the campus is firmly set.“, Stephan Sopke continues.
Corinna Oster
Corinna Oster is a Masters student at the Institute
for Chemistry and Biology of the Marine Environment in Oldenburg. She is participating
in the expedition as part of her studiesin marine environmental science and can
even get credits for it. In the coming semester, she will use the data from the
seawater and fluid samples from the expedition for writing her thesis. The
topic of her thesis will be how the composition of dissolved organic matter (DOM)
changes in the hydrothermal plumes.
“Dissolved organic matter is molecules in the sea
which can be used as nutrients by bacteria,” explains Corinna.
She takes her samples from the CTD and the ROV MARUM QUEST. For her
research it is important that the samples are taken from the plume of the
hydrothermal vents. Furthermore, it is important that there is no contamination
of the samples with organic matter. All plastic bottles in which the samples
are stored for return to Oldenburg have to be cleaned carefully before using
them. Glass containers are heated to 400°C to clean them of organic matter.
Back in Oldenburg, she will determine the composition of the organic matter
with a mass spectrometer.
Malin Tietjen
Malin Tietjen
Malin
Tietjen is a PhD Student in the Department of Symbiosis at the Max Planck
Institute for Marine Microbiology in Bremen, Germany. Her main focus lies in
the symbiosis between the deep-sea mussels of the Bathymodiolinae group that occur at hydrothermal vents and their chemosynthetic
bacterial partners. These symbionts live in the gills of the mussels and can
produce nutrients for their host by using the chemical energy from hydrogen,
sulfur and methane in the surrounding seawater. In return, the symbionts
benefit from the constant flux of energy-rich seawater passing through the
mussel gills. “We suspect that the symbionts also take advantage of the shelter
provided by the host and thereby avoid being washed away by currents from the
sulfur-rich seawater”, so Malin Tietjen.
During the expedition, Malin Tietjen collects mussels with the unmanned submersible QUEST from the seafloor and later dissects the mussel gills in the lab to extract DNA and RNA. From the genetic information obtained, she can investigate which genes are responsible for the maintenance of the symbiosis, for example genes involved in the synthesis and exchange of metabolic products.
During the expedition, Malin Tietjen collects mussels with the unmanned submersible QUEST from the seafloor and later dissects the mussel gills in the lab to extract DNA and RNA. From the genetic information obtained, she can investigate which genes are responsible for the maintenance of the symbiosis, for example genes involved in the synthesis and exchange of metabolic products.
Malin Tietjen
To become a marine biologist, Malin Tietjen left Germany where undergraduate degrees in Marine Biology are not offered, and moved to England to study this subjects fo her Bachelor’s and Master’s degree. “I always thought that the sea was incredibly interesting because it is infinite and full of life from tiny organisms to gigantic animals, all of which is poorly understood. I am fascinated by our oceans just like other people are fascinated by space because it has no end”.
Research Vessel SONNE
Research Vessel SONNE
In 2014, German marine science entered on a new era with its new research vessel SONNE. With a length of 116 meters and a beam of 21 meters, SONNE not only significantly exceeds the size of her predecessor, she also sets new technological standards. Thanks to innovative marine technology and improved methods, SONNE´s scientists gain access to previously uncharted ocean depths. Some of the vessel’s equipment includes state-of-the-art echo sounders and winches with cables up to twelve kilometers long, making measurements even in the deepest oceanic trenches possible. Several underwater robots can be used simultaneously to image the seafloor and to bring valuable samples back on deck. These samples can be analyzed directly on board in SONNE´s 17 laboratories.
Scroll up
Scroll left
Scroll right
Scroll down
Decks 1 and 2
Deck 3
Deck 4
Decks 5 and 6
Decks 7 and 8
Deck 9 and main mast
Order free publications
The German Federal Ministry of Education and Research offers a range of publications on various topics as RV SONNE and marine science. You may order all publications free of charge.
We recommend the following publications:
Exploring the Secrets of the Deep Sea
MARE:N - Coastal, Marine and Polar Research for Sustainability
The Future of the Oceans
We recommend the following publications:
Exploring the Secrets of the Deep Sea
MARE:N - Coastal, Marine and Polar Research for Sustainability
The Future of the Oceans
Take a walk on board of RV SONNE
We invite you to visit this online multimedia exhibition about RV SONNE which includes videos and picture of our cruise.
Explore the decks of RV SONNE with the Google Maps tour of the Google Cultural Institute.
Explore the decks of RV SONNE with the Google Maps tour of the Google Cultural Institute.
Deck 1 and 2
Decks 1 and 2
The
lower deck, Deck 1, is the tank deck on which engine rooms and the winch room
are located. Part of the dark green deck, Deck 2, houses living quarters, and
the other part houses an engine room. Members of the engine crew are Chief
Engineer Achim Schüler, Ship’s Engineers Steffen Genschow and Stefan Kasten,
Electrical Engineers Hendrik Schmidt and Patrick Adam, Deck Locksmith Torsten
Bolik and Ship’s Mechanics Björn Bredlo, Georg Hoffmann and Mátyás Talpai.
Decks 1 and 2
All
the important systems on the SONNE are available in duplicate; for example,
there are two complete engine rooms. This ensures that the SONNE will remain
maneuverable in the event of an emergency. The research vessel has a diesel
electric drive consisting of four diesel generators and five electric drives –
and tow large ship’s propellers on the stern.
Deck 3
Deck 3
The
blue deck, Deck 3, is the main deck where you board the ship. The hangar, the
working deck and most of the laboratories are located here. Most of the time,
Bosun Jürgen Kraft and Seamen Frank Heilbeck, Günter Stängl, Ingo Fricke, Rene
Papke, Reno Ross, Sascha Fischer and Torsten Kruszona work on the main deck and
deploy the scientific equipment using the winch. The Scientific Technical
Service (WTD) also has its offices here; Matthias Großmann, Stefan Meinecke and
Bernhard Bagyura take care of the computer networks and onboard instruments
such as the echo sounder and the CTD probe.
Before/after view
Before and AfterDry Lab
Please click Play in the lower left corner to start the before/after view.
Before/after view
Before and AfterWet Lab
Please click Play in the lower left corner to start the before/after view.
Before/after view
Before and AfterWet Lab 2
Please click Play in the lower left corner to start the before/after view.
Deck 4
Deck 4
The
red deck, Deck 4, which is also the first superstructure deck, houses the mess
hall, lounges, galley and provisions room as well as the scientists’ conference
room. Head Cook Frank Tiemann and Assistant Cook Frank Stöcker work in the
galley.
Deck 4
Stewards René Lemm and Sylvia Kluge, Maik Steep and Bernardo Carlonio take care of the entire mess hall for the five meals and ensure that small meals such as bread, cheese and spreads are always available, even in the middle of the night. The stewards are also responsible for cleaning the cabins and all the interior rooms. First Steward René Lemm also runs the shop, where you can buy sweets, toothpaste, shampoo and souvenirs.
Decks 5 and 6
Decks 5 and 6
Decks
5 and 6, which are orange and yellow, are a living space. The doctor’s office,
the sick bay and the operating room of Ship’s Doctor Gabriele Wolters are also
on Deck 5. The captain’s and chief scientist’s chambers are located on Deck 6.
Decks 7 and 8
Decks 7 and 8
Deck
7 is the hayloft which houses one of six ventilation systems. The bridge is on
Deck 8. This is where the four navigators, Captain Lutz Mallon, Chief Officer
Jens Göbel, and Second Officers Lars Hoffsommer and Ulrich Büchele take turns.
Deck 9 and Main Mast
Deck 9 and main mast
Deck
9 is the observation deck. The observation room is used for birdwatching and
whale watching. The main mast, where navigation lights, radar equipment and
various antennas and satellite receivers are installed, rises above all the
decks.
Scroll down to continue
Swipe to continue
Swipe to continue
Research and Life on Research Vessel SONNE
Research and Life on Research Vessel SONNE
The Expedition SO253
2
3
5
6
Expedition at a glance
Expedition Blog
Boarding the ship
Arriving and settling in
Breaking for exploring the abyss
Waiting for the research permit for Macauley Cone
Christmas evening onboard the SONNE
We wish the readers of this blog a Merry Christmas!
The first sampling event
Sound velocity in the deep sea
The tea of the sea
Land in sight!
A first test dive for QUEST
Water samples from 700 m water depth
Hunting the hot plume
Samples from the interior of the hot plume
Long night hours for science
Particle fishing on top of a volcano
QUEST going down
A do-it-yourself-construction
Volcanoes as an energy source
Rocks, crabs, and flatfish
Plentiful bounty
Radioactivity from within the volcano
Radium as indicator of mixing
Oases of life at the bottom of the sea
Energy from chemistry
Symbiosis of mussels and bacteria
Thermal Blankets for the South Pacific
Dolphins
Fascinating choreography of the dolphins
The tap is on
Samples for years to come
A giant from the ring of fire
Hot search for the source
“Daddy, I want a smoker too!”
Stowaways
Side trip to Curtis and Cheeseman Island
Feathered escort for the camera drone
Barbecue and Dinner for One
Happy New Year!
Lucky Strike at Haungaroa volcano
A swarm picture
Shimmering water
Shimmering water, volcanic ash and iron crusts
Productive field
Windstorm front ahead!
The topographical survey of the oceans
We found a chimney field!
Find from another world
Our Chimney
Material for many years to come
Yo-Yo above the volcano
Snow-covered underwater Christmas tree
Goose barnacles
The volcano is keeping its secrets
Sparks with a shark
Shark attack on the Magnetometer
The magnetic sense of sharks
Pole reversal gives away the age of the sea floor
Sawing
Chimney cutting machine
First dive at Brothers Volcano
Another hydrothermal vent field
High seas bring us to Kibblewhite volcano
We are not alone!
Midnight on board
King of the air
Engine room tour
Safe return to port
Fuel for a month of full speed
Not One Day without Science
Travel with a Blue Angel
The winch room
Inside the control center for QUEST
Fascinating rock-formations
Chimneys Doused in Green
Delicate Columns on the Seabed
Not Delicate at All
Gold! No, not gold. Chalcopyrite.
A Worm as a Bacteria Container
Deep Sea TV
Octopus
Enchanted Forest at the Bottom of the Sea
Mysterious 90-Meter Column
200th Radium Sample
Back at Brothers
Hold on tight!
Spectacular Maneuver
Dialog with the Robot
A Great Achievement by the ROV Team
Sample Inventory
The Last Dive
32 Years of Cooking for Marine Research
I pack my container...
Numbers, please!
Thank you!
Scientists
Prof. Dr. Andrea Koschinsky
Prof. Dr. Andrea Koschinsky
Prof. Dr. Andrea Koschinsky
Dr. Valerie Stucker
Dr. Valerie Stucker
Dr. Valerie Stucker
Dr. Lucy Stewart
Dr. Lucy Stewart
Dr. Lucy Stewart
Research Assoc. Prof. Dr. Sylvia Sander
Research Assoc. Prof. Dr. Sylvia Sander
Research Assoc. Prof. Dr. Sylvia Sander
Dr. Christian Borowski
Dr. Christian Borowski
Benedikt Geier
Benedikt Geier
Dr. Charlotte Kleint, Jan Hartmann, and Nico Fröhberg
Dr. Charlotte Kleint, Jan Hartmann, and Nico Fröhberg
Dr. Charlotte Kleint, Jan Hartmann, and Nico Fröhberg
Prof. Dr. Cornel de Ronde
Prof. Dr. Wolfgang Bach
Rebecca Zitoun
Rebecca Zitoun
Rebecca Zitoun
Prof. Dr. Harald Strauß
Marie Heidenreich
Dr. Maren Walter
Dr. Maren Walter
Dr. Maren Walter
René Neuholz
Dr. Andreas Türke
Dr. Andreas Türke
Dr. Andreas Türke
Stefan Sopke
Stefan Sopke
Stefan Sopke
Corinna Oster
Malin Tietjen
Malin Tietjen
The nine decks of SONNE
Take a walk on board of RV SONNE
Decks 1 and 2
Decks 1 and 2
Deck 3
Dry Lab
Wet Lab
Wet Lab 2
Deck 4
Deck 4
Decks 5 and 6
Decks 7 and 8
Deck 9 and main mast
